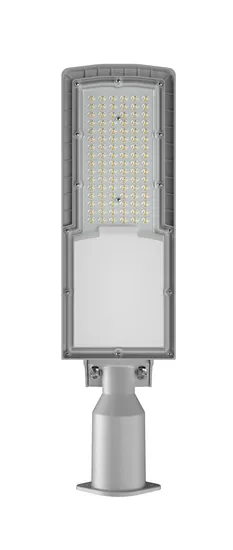

High Power CE Certificate Garden IP66 Waterproof Outdoor LED Solar Street Lighting

Product Description

Product Feature
1. Unit comes with an adjustable mount. designed to fit on in multiple ways. The light can be angled up or down depending to focus the action. Ideal for aiming your light in the right direction or lighting farther away areas.2. 5 years warranty. Aluminum Housing with high tech Heat Sink. Better Heat dissipation ensures longer LED life and safety. IP65 Waterproof for all weather conditions. 3. Dia Lux Drawing. Providing a more visualized lighting solution for field lighting, great light for sports courts such as Basketball, Tennis, soccer etc, etc.4. Designed for higher installations, these lights push more light to the ground. LED modules that produce over 160 Lumens per watt. 5. LED Type: Lumi leds 5050/ 3030, Beam angle: 20° / 40° / 60° / 90° / 140*100° / PC Cover.720W led stadium light with Meanwell driver for exterior lighting 6. Aluminum Housing with high tech Heat Sink - Fin Structure. Better Heat dissipation ensures longer LED life and safety. IP65 Waterproof for all weather conditions.

Applications:
LED street light is suitable for the lighting of highway and roadway, park and playgroun, villa courtyards, airport, and other areas.
Product Parameters of LED Street Light

Rated Power	50W	100W	150W	200W
Chip Type	SMD3030	SMD3030	SMD3030	SMD3030
Chip Qyt	60pcs	120pcs	150pcs	200pcs
Luminous Efficiency	150lm/W
Colour Temp.	3000K/4000K/5000K/5700K/6500K, Optional
Beam Angle	TYPE II / TYPE III, Optional
Color Rendering Index	Ra>70
Input Voltage	AC100~277V, 50~60Hz
Power Factor	>0.95
Driver	MEANWELL, INVENTRONICS or others, according to customer's requirements
Options for Driver	Conventional/0-10V, optional; additional light controller can be installed
Matreial of Housing	ADC12 Die-cast aluminum lamp body + PC lens + 304 stainless steel screws
Protection Level	IP66/IK08
Lightning Protection	6KV or 10KV
Installation Diameter	Ф50mm	Ф60mm
Product Size	493*170*70mm	573*190*70mm	665*210*80mm	715*230*80mm
Warranty	5 years
