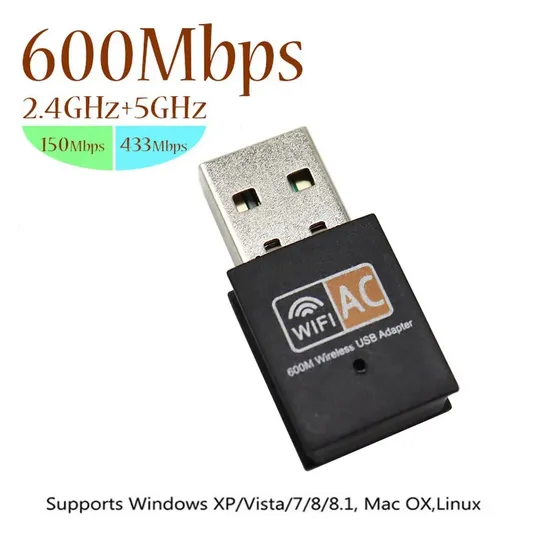

Computer External 2.4G/5g USB WiFi Receiver Transmitter 600m Dual-Band Wireless Network Card
Basic Info.
Model NO.
5B03
Interface
USB
Transmission Rate
600Mbps
Application
Desktop, Laptop
Connecting Medium
Wireless
Motherboard Integrated
Separate Network Card
Frequency Range
Dual Frequency
Type of Network
Fast Ethernet
Field
Computer, Laptop
Interface Type
USB2.0
Support Agreement
IEEE
Transport Package
English Blister Card Packaging
Specification
3.3*1.5*0.8cm
Trademark
Cisberg
Origin
China
HS Code
8517629200
Production Capacity
200000 Pieces/Year
Product Description
Product Specifications:
Main chip: RTL8811 CU
interface: USB 2.0
antenna: Built-in 2DBI antenna
Transmission distance: Indoor MAX: 100 meters (depending on the environment)
Operating frequency: 2.412~2484GHz/5.15~5.825GHz (depending on country and region)
Transmit power:
802.11b (CCK) 11Mbps: 18/-1dBm
802.11g (OFDM) 54Mbps: 15/-1dBm
802.11n(OFDM) 54Mbps: 15/-1dBm
802.11ac (AC80) MCS9: 12/-2dBm
EVM:
11b 11Mbps:<-15db
11g 54Mbps:<-27db
11ac MCS9: <-30db
Receiving sensitivity:
802.11b: -76/-1dBm; 802.11g: -65/-1dBm
802.11n (HT20), -70/-1dBm; 802.11n (HT40), -65/-1dBm
AC80-MCS9: -55/-1dBm
Wireless transmission rate: 11b: Max 11Mbps; 11g: Max 54Mbps;11n: Max 150Mbps; AC: Max 433Mbps
Voltage/current range: 5 VDC±5%VDC/<220mA(MAX)
Power consumption:
Transceiver state: 220mA (max)
TX state only: 220mA (max)
RX state only: 180mA (max)
operating system: Windows XP/Vista/7/8/10/11,Linx2.6X;Mac OS X
Wireless security support: WPA/WPA2/WEP/802.1X/WMM;
Product Descriptions:
This dual-band wireless USB network card is suitable for wireless connection of desktop PC and other devices and can provide a convenient and fast way to access the Internet wirelessly. The network card supports the automatic detection function and can automatically adjust the speed. Comply with IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.11e, IEEE 802.11i, IEEE 802.11ac standards;
Wireless transmission rate: 2.4G band can be up to 150Mbps; 5G band can be up to 433Mbps.
Supports WPA and WPA2 security mechanisms, supports WPA/WPA2/WEP/802.1X/WMM data encryption, and can provide security for wireless network connections.
Compatible with Windows XP/Vista/7/8/10, Linx2.6X; Mac OS X and other operating systems
Has strong anti-interference ability
Support for the latest wireless standards
Miniature design, exquisite and compact
Product size: 3.3*1.5*0.8cm
Packing size: 15*9.5*0.9cm (blister cardboard packaging)
Bare weight: 3g
Bare disc weight: 9g
Full set weight including CD: 25g
Standard box: 500 pcs/box
Standard box size: 46*36*47.5cm
Standard container weight: 15KG
Product accessories: 1*600M network card, 1*CD
