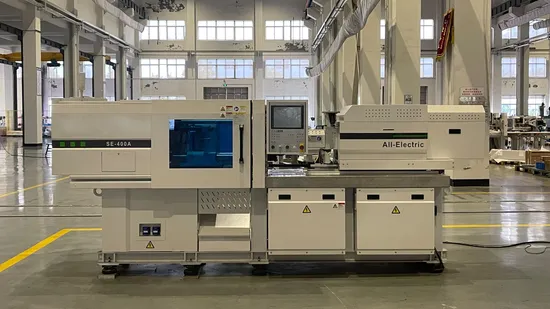

SE-400V High Speed High Precision Energy Saving High Efficiency All Electric Injection Molding Machine

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-400V
CLAMP TONNAGE		kN	400
SPACE BETWEEN TIE-BARS		mm	304x284
PLATEN DIMENSION		mm	450x430
OPEN STROKE		mm	230
MOULD THICKNESS		mm	120-350
EJECTOR STROKE		mm	60
EJECTOR FORCE		kN	19.6
EJECTOR NUMBER			1
MACHINE WEIGHT		T	2.3
SCREW DIAMETER		mm	18	20	22	22	25	28
INJECTION CAPACITY		cm3	19	24	29	40	52	65
INJECTION WEIGHT (PS)		g	17	21	26	36	47	59
PLASTICIZING CAPACITY (PS)		kg/h	12.5	15	18	18	25	35
SCREW SPEED		rpm	400			400
HE/VTER BAND			3+1			3+1
HEATER POWER		kW	2.6			4.8
NOZZLE PRESSING FORCE		kN	15.7			15.7
STANDARD			60			130
INJECTION SPEED		mm /s	200			200
INJETION RATE (PS)		cm3/s	58	72	88	76	98	123
INJECTION PRESSURE		MPa	303	245	203	292	240	188
		kgf/cm2	3086	2500	2066	2978	2448	1918
MAX.INJECTION HOLD PRESSURE		MPa	242	196	162	233	192	156
		kgf/cm2	2469	2000	1653	2382	1958	1594
TOTAL POWER		kW	10.6			16.8
OPTION			60H			130H
INJECTION SPEED		mm / s	450			400
INJETION RATE (PS)		cm3/s	117	145	175	152	197	247
INJECTION PRESSURE		MPa	303	245	203	317	245	195
		kgf/:m2	3086	2500	2066	3228	2500	1993
MAX.INJECTION HOLD PRESSURE		MPa	242	196	162	253	196	156
		kgf/cm2	2469	2000	1653	2583	2000	1594
TOTAL POWER		kW	17.6			19.8
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS

PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .
