10cbm/H Mini Concrete Pump Portable Mini Diesel Powered
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HBTS20
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Unique Selling Point
Main Parts Are World Famous Brand
Power Type
Diesel
Max. Vertical Conveying Distance
120m
Max. Horizontal Conveying Distance
500m
Diesel Engine Power
56kw
Transport Package
Container
Specification
6900*2300*3150mm
Trademark
shengmao
Origin
China
HS Code
8413400000
Production Capacity
50 Sets/Month
Product Description
Concrete Pump Electricity or Diesel PoweredDeliver concrete 200m in height and 500m in length
World famous brand main parts, Remote control, Easy to move
Product Description
Concrete pump is used to deliver concrete to job site above ground or underground, such as high-rise building or tunnel construction. Our concrete pump can deliver concrete to about 200 meters in height and 500 meter in length. World famous brand main parts are used by our concrete pump which can ensure the performance of the machine. All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites. Currently, we have 10, 20, 30, 40, 50, 60, 80, 90m3/h electricity powered or diesel powered concrete pump for you to choose. Welcome to contact us for details and quotations.
| Specification of 30m3/h diesel concrete pump | |||
| Items | Units | Parameters | |
| BS30-10-56R | |||
| Performance of the whole machine | Max. theoretical concrete output | m3/h | 30 |
| Main hydraulic pump | | Rexroth | |
| Max. concrete pumping pressure | Mpa | 10 | |
| Distribution valve type | | S valve | |
| Concrete conveying cylinder bore*stroke | mm | Ф140×1200 | |
| Hopper capacity | L | 400 | |
| Feeding height | mm | 1200 | |
| Outlet diameter | mm | Ф100 | |
| Power system | Diesel engine model | | Delier 4100 |
| Diesel engine power | kw | 56kw | |
| Rated rotating speed | r/min | 1800 | |
| Hydraulic system | Hydraulic circuit form | | Open circuit |
| Pumping system oil pressure | Mpa | 26 | |
| Mixing system pressure | Mpa | 6-8 | |
| Capacity of oil tank | L | 260 | |
| Max. concrete delivering distance (vertically/horizontally) | m | 120/500 | |
| Other parameters | Max. aggregate diameter | mm | 20 |
| Inner diameter of delivering pipe | mm | Ф100 | |
| Overall dimension: length*width*height | mm | 4500*1750*1600 | |
| Total weight | kg | 2500 | |

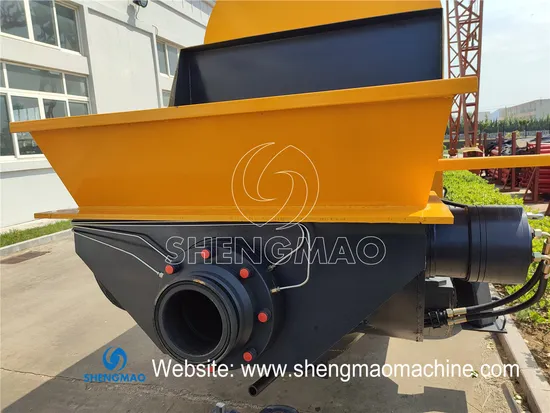

Detailed Photos
Our Service
| Pre-Sales Service * Providing solution for your construction project; * Providing design drawing as per your requirements; * Providing professional quotation for your inquiries. | After-Sales Service * Machine installation and test running; * Operators trainning and spare parts supply; * Machine problems solving (by phone or job site visiting). |
Packaging & Shipping
| Packaging | |
| Size | 4800 (L) * 1850 (W) * 1700 (D) |
| Weight | 4.5 T |
| Packaging Details | The concrete mixer pump will be delivered in container. It will be fixed inside container by steel wires to prevent it from bumping into container during shipment; Some small parts will be packed with carton box. |
Product Parameters
| HBTS10R Diesel Concrete Pump Capacity: 10 m3/h | HBTS20R Diesel Concrete Pump Capacity: 20 m3/h |
| HBTS40R Diesel Concrete Pump Capacity: 40 m3/h | HBTS60R Diesel Concrete Pump Capacity: 60 m3/h |
| HBTS80R Diesel Concrete Pump Capacity: 80 m3/h | HBTS90R Diesel Concrete Pump Capacity: 90 m3/h |
| Concrete pump with crawler Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available | Concrete pump with trailer Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available |
