1004 1005 1204 1304 PDC Inserts Cutter for Geology Exploring Drill Bit

Product Description

Product feature
1.factory direct supply
2.factory wholesale price
3.stable quality
4.high drilling efficiency
5.good wear resistance
6.long service life
PDC cutter for minig and oil drilling

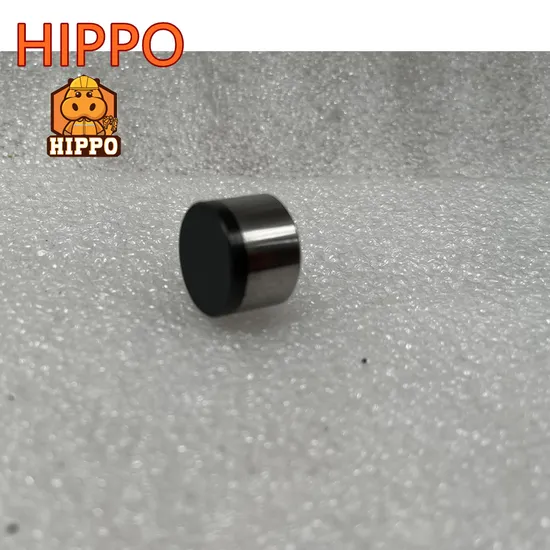

The PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate. PDC cutters are also named Polycrystalline Diamond Compact cutters, which is a kind of super hard material. The use of polycrystalline diamond compact (PDC) cutters is widely spread nowadays due to their high performance and durability in harsh environments.
The low rock breaking efficiency of conventional polycrystalline diamond compact (PDC) bits in hard abrasive formations prompts the development of PDC cutting elements from the planar structure to the non-planar structure.

Product Code	Diamond Table Thickness(mm)	Diameter(mm)	Length(mm)	Available Chamfer
1308	2.00+/-0.20	13.44+/-0.03	8.0+/-0.1mm	0.012"/0.016"/0.020"x45degree
1313	2.00+/-0.20	13.44+/-0.03	13.20+/-0.1mm	0.012"/0.016"/0.020"x45degree
1608	2.00+/-0.20	15.88+/-0.0	8.0+/-0.1mm	0.012"/0.016"/0.020"x45degree
1613	2.00+/-0.20	15.88+/-0.0	13.20+/-0.1mm	0.012"/0.016"/0.020"x45degree
1908	2.00+/-0.20	19.05+1-0.03	8.0+/-0.1mm	0.012"/0.016"/0.020"x45degree
1913	2.00+/-0.20	19.05+1-0.03	13.20+/-0.1mm	0.012"/0.016"/0.020"x45degree
1916	2.00+/-0.20	19.05+1-0.03	16.0+/-0.1mm	0.012"/0.016"/0.020"x45degree

Standard Size Chart, Non-standard sizes are available on requests.
Hunan Hippo Drilling Tool Co. LTD. specializing in the production of PDC drill bits, diamond drill ,well drilling bits, mine drill, oil drill, composite drill teeth and other products. covering an area of more than 2,000 square meters.The technical staff and advanced production equipment have rich experience and independent and design capabilities. We can accept OEM and ODM orders. It is a company integrating development, production and sales.
1.advance technology &equipment , international standard
2.high precision CNC machines , API&ISO certified.
3.More than 10 years producing experience
4.Skilled workers with rich experience Products are widely used in well drilling, geological exploration, coal mines, mining stone, oil and gas mining, roads, railways,bridges, water conservancy and hydropower, engineering anchoring, construction and other industries.
Package And Shipping
FAQ 1. Are you a manufacturer? What can I buy from you? We are a manufacturer and our factory is located in Changsha City, the capital of construction machinery in Hunan, China. We specialized in producing PDC bits, PDC coring bits, impregnated diamond core bits, tricone bits, DTH hammer bits , reaming shell , water well drilling rig , drill pipes, geological pipe casing etc. 2. Is the product quality and customer service good? Adhering to the principles of customer first and quality first , we have already passed ISO 9001 certification and having rich experienced QC, so each order will be strictly inspected and tested before delivery. 3. What are our strengths? We are an enterprise integrating independent research and development, production and processing, and sales, with professional technical personnel, strong production capacity, and 12 years of production and research experience. We have already established high-performance production lines for PDC rock bit, DTH hammer, cone bit and drill pipe , and can provide OEM and ODM services. 4. What services can we provide? Acceptable delivery terms: EXW , FOB , C&F , CIF etc. Accepted payment currency: USD, AUD, CAD, SGD, EUR, GBP, HKD, JPY, RMB etc. Acceptable payment terms : TT, LC, OA , Western Union, Paypal, Credit card, collection , cash etc. 5. What is the mode of packaging and transportation ? Sample orders can be acceptable , MOQ is one piece . The goods will be packed in wooden case or cardboard boxes or pallets. Delivery by express, sea, air, or land is available.
