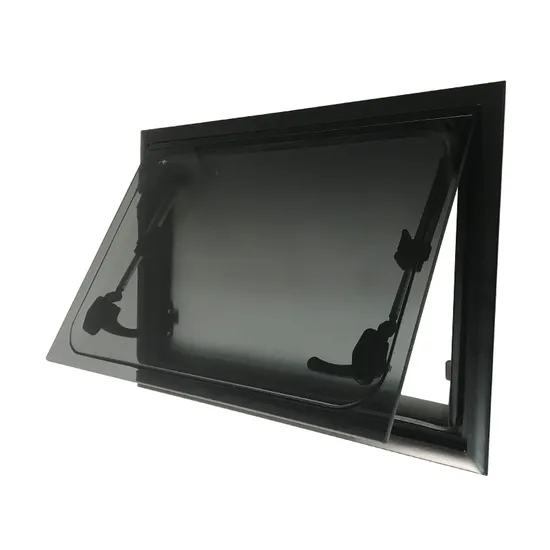

New Style Square Type Flat Acrylic Glass Caravan RV Window Awning Type

Product Description

Product Description MG23RW Right-angle RV window provides maximum ventilation in the motorhome featuring push-out acrylic glass that can be opened for up to 70 degrees with telescopic struts. And the telescopic support rod allows you to fix the window at different positions.

Material	aluminum outer frame, ABS or aluminum inner frame, and double-glazed anti-UV acrylic glass
Max. opening angle	70 degrees, and it can be fixed at different positions with the adjustable support rod. You can also choose fixed struts with this awning caravan window.
installation method	easy-to-quick clamping installation
Fitted wall thickness	25-35mm, 32-42mm, 40-50mm, or over
Functions	Ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can act as an emergency exit when the screen and blind are unlocked and the window opens.
Applications	For all kinds of RVs, modified cars, flat surface buildings, etc.

AVAILABLE SIZES

Ser.	Product Code	Cut-out Size(W*H) (mm)	Overall Size(W*H) (mm)
1	23RW-350280	350*280	372*302
2	23RW-500350	500*350	522*372
3	23RW-500400	500*400	522*422
4	23RW-500450	500*450	522*472
5	23RW-500500	500*500	522*522
6	23RW-600600	600*600	622*622
7	23RW-700300	700*300	722*322
8	23RW-700400	700*400	722*422
9	23RW-700500	700*500	722*522
10	23RW-700800	700*800	722*822
11	23RW-800400	800*400	822*422
12	23RW-800500	800*500	822*522
13	23RW-900450	900*450	922*472
14	23RW-900500	900*500	922*522
15	23RW-900550	900*550	922*572
16	23RW-900900	900*900	922*922
17	23RW-1000400	1000*400	1022*422
18	23RW-1000500	1000*500	1022*522
19	23RW-1000600	1000*600	1022*622
20	23RW-1000800	1000*800	1022*822
21	23RW-1100450	1100*450	1122*472
22	23RW-1100550	1100*550	1122*572
23	23RW-1200350	1200*350	1222*372
24	23RW-1200500	1200*500	1222*522
25	23RW-1300600	1300*600	1322*622
26	23RW-1450550	1450*550	1472*572
27	23RW-1455605	1455*605	1477*627
Other custom sizes are available

W: ; H:,mm
W: width of the window fitting surface; H:height of the window fitting surface, unit:mm
Installation Effect

Package & shipping
Certificates
Company Profile Our company, Anhui Maygood RV Accessories Co., Ltd, was established in 2008, it has been dedicated to designing, developing, producing, and supplying RV accessories for the RV industry globally for over 16 years. And it is one of the early professional and leading manufacturers of RV body parts in China. Its product range covers RV windows, entry doors, roof skylights, roof vents, access doors, picnic tables, water tanks, steps, air vents, etc.Our company occupies an area of 20000 square meters with standard plants covering 7000 square meters and employs more than 100 staff. It is committed to customer satisfaction through manufacturing and innovating products to the highest level. With our rich experience in this industry, our goods have obtained a good reputation from clients all over the world. Currently, our main overseas markets are West Europe, the Middle East, North America, South America, Asia, Oceania, etc. We are proud that we have an effective working team of quality control and new product development, which allows our client to renew their ranges to expand their markets. We are willing to cooperate with fellow traders to develop parts and components related to recreational vehicles.
Our service1. OEM Manufacturing welcomes Products, packages, etc. 2. Sample order3. Quick response-We will reply to your inquiry within 24 hours.4. We will track the product for you every two days until you receive the product after shipping. When you receive the goods, test them, and give me feedback. If you have any questions about the problem, please contact us and we will provide you with a solution.
Our advantages
1-Factory Management
MAYGOOD has advanced imported equipment and a Factory Management system that Can Guarantee Our Factory Work Efficiently.
2-Quality Safety Reliability
We have strict quality control and have passed the Quality Management System Certificate
3-Excellent Team Quality guaranteed-100% customer satisfaction
Excellent after-sale service-12-month factory warranty
4-Export Experience
With more than 14 Years of exporting experience, our products have been exported to major foreign markets including North America, Europe, South America, the Middle East, etc. FAQs
Q 1: Are you a trading company or manufacturer?
A: We are a factory with more than 16 years of professional experience in designing and manufacturing RV body parts.
Q 2: What's your MOQ for OEM products?
A: MOQ generally is 100pcs per style
Q 3: What's the sample delivery time and mass production delivery time?
A: Sample generally needs 7 days, and mass production generally 20 days.
Q 4: What are your payment terms?
A: For small orders, payment is delivered on delivery. For large orders, 30% is paid after signing the contract, 70% is paid before delivery, and the payment is cleared for delivery.
Q 5: May I visit your factory?
A: Sure, welcome any time. We can pick up you from the airport or the station.
Q 6: What are your main products?
A: Our main RV accessories include RV doors, windows, LED skylights, roof hatches, water tanks, steps, picnic tables, etc.
