Bogda Model 500 Plastic PVC Pulverizer

Product Description

Why Choose BOGDA?
1. Bogda uses internationally renowned brand motors and appliances for customers to buy locally.
2. Bogda can do plant planning for customers and maximize benefits with minimal cost.
3. Bogda adopts special screw, long life, high plasticization.
4. Bogda machinery high degree of automation, low energy consumption, high output.
5. Bogda equipment design is reasonable, installation and disassembly is simple and convenient.
6. Once the customer has any problem in installing and operating the machinery, Bogda will arrange corresponding technicians to provide online video guidance for the customer in the shortest time or go to the customer's factory to solve the problem if the government policy allows.
Product Description

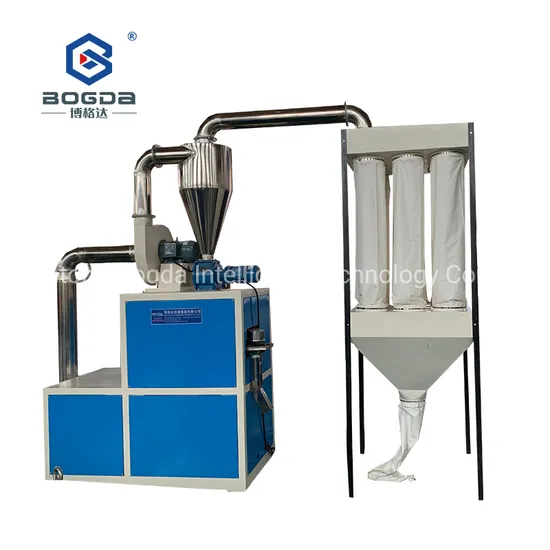

BOGDA Model 500 Plastic PVC Pulverizer
1. Plastic pulverizer making machine can grind all kinds Hard & Soft materials into 20-80 mesh powders in normal temperature.2. Widely use range, PVC/PE/ABS/PS/PA/PC Materials.
3. Plastic pulverizer has a more higher output, 2 or 3 times than normal miller, equip with Dust collector. An ideal energy saving machine in plastic industries.4. Includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system. Automatic and space saving.5. Sword adopted imported stainless steel, durable, can work continous.6. Plastic pulverizer Knife can be adjusted easily, easily maintained and control7. Matched with oil pump imported, can used about 3-4 years in normal use.
Features of plastic milling machine 1-Compact and space-saving design
2-Low energy consumption and high output
3-Adjustment of the grinding Disc gap from outside
4-Machines by handle and keep the Disc balance
5-Easy changing of the grinding knife
6-Main bearing has water cooling system
7-main grinding room,which is specialized in kinds of material, the grinding knife material is special steel.
8-the machine have fan and air fan to work together.
9-vibrating sieve machine,to become equally powders.
10-all pipe material: stainless steel
11-Hopper:stroge material,keep workshop and machine clean.
Product Parameters

Model	SMF-500	SMF-600	SMF-800
Milling chamber	φ500	φ600	φ800
Rotary Blades	24 PCS	28 PCS	36 PCS
Main Speed(RPM)	3900	3900	3900
Main motor	37KW	45KW	45KW
Final powder size	12-120 micron	12-120 micron	12-120 micron
Capacity	150-230kg/hr	200-350kg/hr	400-600kg/hr
Machine Weight	1500kgs	1600kgs	1800kgs
Dimension(mm)	4200*1450*2900	4500*1450*3600	4800x1800x4000

Production Application
Plastic crusher is mainly used to crush all kinds of plastic plastics and rubber such as plastic profile, pipe, rod, silk thread, film, waste rubber products, also used paper carton boxes.The granule can be used directly for extruder or injection molding, and can also be used for regeneration through basic granulation.There is also a plastic crusher injection molding machine peripheral equipment, can be broken and recycled injection molding machine produced defective products and the mouth of the machine.
Before Crushing


After Crushing
Certifications


Packaging & Shipping


Company Profile


BOGDA Machinery Group is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. Deeply trusted and praised by customers, BOGDA company has many subsidiaries such as plastic pipes equipment, sheet/board/film intelligent equipment, intelligent automation equipment, and granulation equipment. We are familiar with kinds of plastic raw materials to help you choose the most suitable machine on best quality by economically. Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.
BOGDA has advanced design concepts in the extrusion field, strives for perfection in product quality, and continues to improve in technology. It can provide customized solutions for each customer to meet the different needs of customers. Project planning, product positioning, plant planning, equipment installation and commissioning, customer staff training, equipment after-sales maintenance and other all-round services. Our advantage is to provide customers with desired, satisfactory, and high-quality products to help customers create the greatest Profits and business opportunities, customer success is our ultimate goal.


FAQ
1. How many electric, water, air need for the machines?BOGDA: technical department supply the whole layout for workshop details.2. Can I operate machine if don't have experienced engineers?BOGDA: (1) short-time engineers to customer company (5-15days) (2) Year-time working as requirements3. Any quality checking before shipment?BOGDA: 100% confirm, run and test machines before shipment with quality certificate.4. How long is the guarantee?BOGDA: 12 months since the first day customer operates (except wear parts)5. How can u help us when face some technical problem?BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks. 6. Where can we get spare part? BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
