High-Speed High Precision Efficient 3/4/5axis CNC Milling Machine Center

Product Description

High-Speed High Precision Efficient 3/4/5Axis CNC Milling Machine Center
Product Description

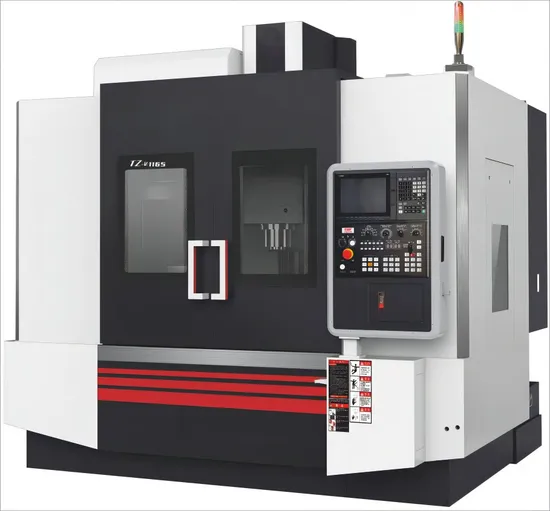

Model: TZ-V1165 Discover our line rail vertical machining center, a revolutionary new generation of CNC machine tools. Crafted with cutting-edge design principles, including ergonomics and precision manufacturing, this machine embodies the pinnacle of automation technology. Through rigorous simulations and prototype trials, it stands as the ultimate tool across diverse industries such as medical, UAV, new energy auto parts, and precision fixture manufacturing. Perfect for mass-producing precision parts.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Benefit from exceptional processing conditions in an optimized production environment, ensuring supreme quality outputs every time. Harness the power of imported machines like our horizontal machining centers and CNC boring machines with rotating tables. These machines ensure premium accuracy, significantly boosting assembly precision and maintaining long-lasting performance.
Cutting-Edge Detection Methods Experience pinpoint accuracy with our positioning tests, meticulously corrected using laser technology and adhering to the stringent German VDI3411 inspection standards (conducted five times for assured precision).
Every machine tool undergoes a rigorous processing test before it leaves the factory, guaranteeing it meets stringent real-world processing and precision accuracy benchmarks.

Product sample
• Our CNC machine center seamlessly integrates milling, drilling, and tapping functionalities, offering versatile solutions for your production needs. • Masterfully handle CNC machining for a range of metal profiles including aluminum, steel, and copper, as well as non-metal materials, with precision and ease. • The CNC Vertical Machine tools find extensive applications in the 3C electronics industry, rail transportation, aerospace, and more,catering to liner module guide rails and beyond.
Packaging & Shipping
•Robust Protection: Ensuring your products reach you in pristine condition.
•Inherent Structural Stability: Built to withstand the rigors of transit.
•Eco-Conscious: Our packaging is friendly to the environment and fully recyclable.
Professional Team
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
