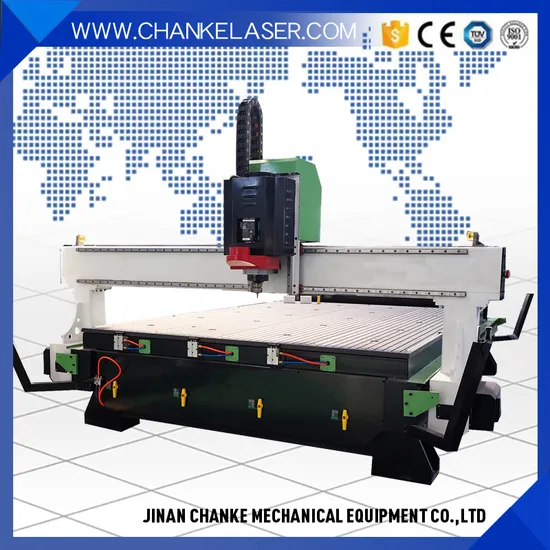

Heavy Duty Woodworking Engraving CNC Machine

Product Description

1. Wood CNC Router
(1) This Wood CNC Router offers an expansive working size of: 1300x2500x200mm, and features a robust vacuum table powered by a 3 kW water-cooled spindle, utilizing a vacuum pump to hold molds securely on the table. This setup is exceptionally user-friendly, eliminating the need for additional material holders. Simply place the mold on the table, activate the vacuum pump, and start working. However, it may not effectively hold irregular or uneven molds, like 3D embossments. Ideal for high-volume production needs, this vacuum table CNC router significantly boosts efficiency and saves time and labor compared to aluminum profile wood CNC routers.
We customize the machine's water-cooled spindle power to meet customer requirements, offering options from 4.5 kW, 5.5 kW, 7.5 kW, or larger. The 3 kW water-cooled spindle can cut and engrave wood, MDF, acrylic, aluminum, copper, brass, and various other metal and non-metal materials. For cutting 30mm wood or MDF, we recommend the 4.5 kW water-cooled spindle. If you need to cut: 40mm thick wood or MDF, opt for the 5.5 kW water-cooled spindle for a one-pass cut. Higher power allows efficient cutting of thicker materials.
Spindles with 1.5 kW or 2.2 kW are excellent for engraving and can cut wood, MDF, and acrylic with multiple passes. These smaller power spindles are ideal for intricate engraving tasks.
(2) The aluminum profile woodworking machine excels at 3D embossment and handling irregular, uneven molds.
(3) This machine's cooling mode is: water-cooled spindle. We can also manufacture the machine with an air-cooled spindle. When selecting a machine, please specify your preferred cooling method or share your requirements, and our engineers will assist you in choosing the best option.
(4) This wood CNC router uses genuine Taiwan HIWIN linear guide rails for high precision and TBI ball screws.
(5) We can manufacture wood CNC routers with 1 spindle and multiple heads (2, 3, 4, 6 heads) or configurations such as 1 spindle with 1 head, 2 spindles with 2 heads, and 3 or 4 spindles.
(5) You might wonder about the efficiency of 1 spindle controlling multiple heads. This configuration allows one water/air-cooled spindle to control multiple heads, enhancing engraving and cutting efficiency. Conversely, 2 spindles with 2 heads mean each spindle controls one head, offering faster working speed and efficiency, albeit at a higher cost than multi-head configurations.
(6) Our factory can customize the wood CNC router according to your requirements, including working size, machine color, and motor size. As a professional buyer, kindly share your precise requirements—such as specific brands of stepper motors and drivers. If you're unsure, let us know, and we will tailor the production to your needs.
2. Machine Features
1) Vacuum & T-slot Combined Table : Perfect for small-scale processing with material holders,
eliminating the need for a vacuum pump and electricity. For larger tasks, it utilizes advanced adsorption, making the process exceptionally simple, convenient, and highly efficient.
2)Water-cooling spindle, providing high precision, extended lifespan, stable operation, and easy startup.
3) Taiwan Hiwin linear square guide rail ,featuring a self-lubricating sliding block. It guarantees uniform
force in all directions, ensuring the machine's unparalleled accuracy and strength.
4) Y-axis utilizes double-motorin-phase drive, ensuring balanced and ultra-smooth operation.
5) DSP controller system with USB interface, allowing it to operate independently from a computer
during operation, making control incredibly easy.
3. Parameter

Brand	CHANKE
Model	CK-1325 wood cnc router
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0kw/4.5/5.5kw as customers choice
Spindle Rotate(rpm)	6000~24000mm/min
Motor	stepper motor or Servo motor imported from Japan as your choice
Tool Diameter(mm)	Ø3.175,Ø4,Ø6/8mm, Ø12.7mm
Machine Structure	Thicker Welded Steel tube Structure for 8mm thickness
Transmission System	X,Y Axis: Helical Rack and Pinion Drive Z Axis: Taiwan TBI ball Screw
X,Y,Z Rail	Taiwan HIWIN square rail
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	USB or PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
software	CAD/CAM,Artcam,Castmate,Ug,Wentai,Type3. UCancamV8
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1680Kg

4. Applicable materials
1)Furniture: including plates, office furniture, doors, and cabinets.
2)Wood products: such as speakers, game cabinets, computer tables, sewing machines, and musical instruments.
3)Board processing: including insulation, plastic chemical components, PCB, car bodies,
bowling tracks, ABS, PP, PE, and more.
4) Decoration: materials like Acrylic, PVC, MDF, glass, plastic, and soft metals such as copper and aluminum.
5. How to Order Our Machine?
To recommend the most suitable machine for you, please provide the following details:
1) What materials will you be processing?
2) What is the maximum size of your processing materials? (Length & Width)
3) Do you mainly engrave or cut? If cutting, what is the maximum cutting thickness?
4) Are your materials cylindrical? If YES, what is the maximum diameter?
5) If possible, could you send pictures of your product samples? This will
help us understand your needs better..
6. Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	200 sets/month
Port	Qingdao, China.

7. Our Service
As a factory manufacturer, we ensure the quality of every component is meticulously monitored by our seasoned technicians. We are confident that our product will seamlessly integrate into your market. We also offer customized machines tailored to your specific needs. Additionally, our technicians are proficient in English and can directly address your concerns.
8.Guarantee & Service of Machine
Two Years Quality Guarantee ,The machine with main parts (excluding the consumables) shall be replaced free of charge if any problem occurs during the
warranty period.
Service: (Providing lifetime technical support, 24/7 online availability)
Before Sale:
We are always available to provide any information you need promptly,
offering professional advice according to your specific needs at no cost.
During Sale:
We handle all production and shipping arrangements. Once everything is
ready, we will keep you informed of the progress.
After Sale:
1) We provide an English Version working manual.
2) If you have any questions during usage and maintenance, our engineers, who
speak fluent English, will assist you online or over the phone.
3) The machine warranty is one year. Should you encounter any unintentional
damage, we will supply the parts free of charge.
4) If your machine experiences significant issues, our engineers will come to
your location to diagnose and fix the problem.
5) Remote control assistance is available if required.
Spare Parts:
From production in our factory to delivering the goods directly to your port or company, we offer an all-in-one service for our customers. With extensive experience in handling shipping and customs clearance,we can devise the most economical delivery plan to ensure a quick lead time. Regardless of whether your
order meets our MOQ or is significantly larger, we treat each customer with utmost importance.
Whole Machine Photo
Here is the working video on YouTube:
https://chankelaser.en.made-in-china.com (CNC router cutting stainless steel)
https://chankelaser.en.made-in-china.com (CNC router engraving on brass - 3D embossment work)
https://chankelaser.en.made-in-china.com (1300x2500mm cutting 50MM MDF)
Customers:
Our esteemed Saudi Arabian client and his son visited us and ordered two machines: one 260w metal and nonmetal laser cutting machine, and one 7.5kw air cooling spindle with a spraying function CNC router for cutting steel and wood.
Packing:
All CNC routers are packed with standard inner plastic wrap and steel structure, accompanied by an outer plywood case. The inner package ensures all small parts are securely fastened. and the Plywood is exceptionally firm, providing robust protection for your valuable equipment. It is sturdy enough to ensure the laser machine remains safe and undamaged during shipping.
The unparalleled benefits of plywood case packaging include:
1. Superior Compressive Strength: Plywood casesoffer enhanced compressive strength and bearing capacity, making them the preferred choice for packing heavy goods securely.
2. Large Board Area:The expansive board area and solid structure streamline the packaging process, enhancing its leakproof and waterproof capabilities.
3. Fumigation-Free Importing:When importing, plywood cases are fumigation-free, simplifying the entire procedure.
