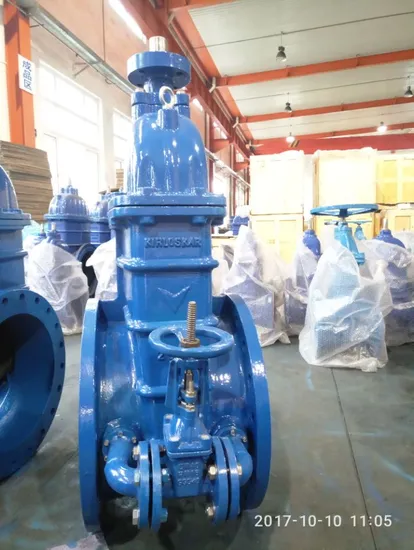

DIN3202 F4 F5 BS5163 Awwa C509 C515 As2129 Non-Rising Stem Inside Screw Di Ductile Iron Sluice Resilient Rubber Seat Gate Valve with Bypass Pn10 Pn16 Pn25
| US$17.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Newton-3
Type
Direct-acting
Material
Ductile Iron
Connection Form
Flange
Pressure
Low Pressure
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Usage
Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
Awwa C509/C515 BS5163 DIN3202 3352 F4/F5 SABS663
Application
Industrial Usage, Water Industrial Usage, Marine
Color
Customized Color
OEM
Accepted
Warranty
2 Years
Place of Origin
Tianjin, China
Brand Name
Tianjin Newton Valve
Working Pressure
Pn6/Pn10/Pn16/Pn25/JIS5K/10K/16K/150lb
Operation
Gear Box
Packing
Wooden Box
Body
Ductile Iron
Seat
EPDM
Disc
Ductile Iron
Shaft
Ss410
Transport Package
Plywood Case
Specification
DN40-DN1200
Trademark
NEWTON
Origin
Tianjin
HS Code
8481804090
Production Capacity
10000000 Sets Per Year
Product Description
Resilient Seat Gate Valve Series| Size | DN40-DN1200 |
| Face to Face | Awwa C509/C515, BS5163, DIN3202 3352 F4/F5, SABS663, AS, KS, GOST |
| Connection Flange | PN6/PN10/PN16/PN25/JIS5K/10K/16K/150LB/AS2129 Table D/E |
| Mounting Flange | Optional: ISO5211 |
| Working Pressure | PN10/PN16/PN25 |
| Application | Fresh Water, Sea Water, Oil, Gas, Acid, Food, Steam |
| Application Temperature | -50~250 ºC |
| Stem Type | Non-Rising Stem/NRS or Rising Stem/OS&Y |
| Seat | Soft/Metal |
| Connection Holes No. | 2/4 Holes |
| Body Type | 1/2 Piece |
Main Parts Materials
| No. | Parts | Material |
| 1 | Body | Ductile Iron(GGG40/50) |
| 2 | Seat | NBR, EPDM/REPDM, FKM |
| 3 | Shaft | SS416, SS431, SS304, SS316, Bronze, Duplex Stainless Steel, Monel |
| 4 | Disc | DI+EPDM/NBR/VITON |
| 5 | Bonnet | Brass, Bronze |
| 6 | O Ring | NBR, EPDM, FKM |
| 7 | Operation | Hand Wheel, Cap, Gear Box, Electric/Pneumatic/Hydraulic Actuator |
Company Profile
Tianjin Newton Valve Co., Ltd is a professional valve manufacturer of rubber seat butterfly valve, wafer check valve, ball check valve, resilient seat gate valve, cast iron valves for marine, Y strainer.
We adpot advanced, efficient, careful manage system to ensure that we can produce high-quality products in time, experieced sales team, perfect after-sales support to satisfy clients.
We adheres to " Newton use science to do better valves, focus on details, continuous improvement" which makes us in an invincible position in the fierce market competition.
We believe that we will do the better quality products, supply most perfect service for you.
FAQ
Q:Could you offer a free sample ?
A:We can provide free samples for you to evaluate, but you need to bear their shipping costs.
Q:Are you a facrory or trade company ?
A:We are a marine butterfly valve manufacturer, and specialize in the production and export of valves for more than ten years.
Q:Would you have a discount if l have a large order?
A:Yes we could offer different discount according to your order quantity.
Q:How will you make the shipment?
A:By sea shipment/Air/Express service.
Q4:Do you accept OEM business?
A4:Yes.We do.
