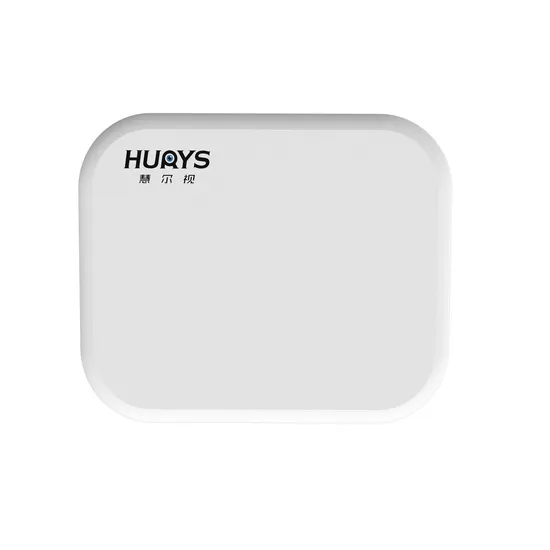

80GHz 260 Meters Dtam D29 Traffic Wide Area Radar Microwave Detector

Product Description

DTAM D29 is a radar product used at urban intersections. It is installed on signal light poles or electric poles to detect vehicle real-time data, pulse data, vehicle passing data, statistical data, area data, queue data, and can provide queue overload incident data and provide the data to intersection controller or data platforms
Product Parameters

No	Specifications	Parameters
1	Operating frequency	80GHz
2	Detection range	6 lanes in both directions; 260m in longitudinal direction
3	Detection angle	Horizontal viewing angle: near beam 70°/far beam 20° Vertical viewing angle: near beam 20°/far beam 12°
4	Speed detection	-100km/h~+100km/h
5	Max number of detected targets	128
6	Max number of detection sections	4
7	Operating temperature	-40ºC~70ºC
8	Operating voltage	DC 24V(Wide voltage range: 16~36V)
9	Operating humidity	0~95%
10	Power consumption	≤10W
11	Installation height	6~8 meters

Installation Instructions Installation and deployment diagram:
Our Advantages The detector uses two-dimensional active scanning array radar microwave detection technology. The microwave signal scans 10 times per second along the transmission direction to reliably detect dynamic or static targets in each lane of the road; Capable of large-area detection, with a normal detection area of up to 260 meters along the direction of the oncoming vehicle, and capable of detecting up to 6 lanes simultaneously; Can track and detect up to 128 targets simultaneously; The detector can detect the presence information of vehicles passing through the virtual loop of each lane, and can display the departure signal of the vehicle when it leaves through the host computer software. When the vehicle is stationary, it can continuously and stably maintain the presence signal; The detector can detect and make statistics on traffic information by lane or detection section, including traffic volume, average speed, time occupancy, headway, vehicle headway, and 85% speed; Detection accuracy of detector: stop line flow detection accuracy ≥95%; flow detection accuracy 30 meters after the stop line ≥90%; stop line existence detection accuracy ≥95%; queue accuracy ≥90%; time occupancy accuracy ≥85%; The detector supports upright installation, and can conveniently use existing poles, with an installation height of 6 to 8 meters; Detector scanning interval: 100ms, statistical period: configurable in the range of 1 to 3600 seconds; Remote debugging and upgrading can be conveniently performed through the network; It can work stably in all climate environments, including rain, snow, fog, haze, strong wind, ice, hail, dust and other severe weather conditions. Applications Urban Intersection Application Solution:
DTAM D29 is a radar product used at urban intersections. It is installed on signal light poles or electric poles to detect vehicle real-time data, pulse data, vehicle passing data, statistical data, area data, queue data, and can provide queue overload incident data and provide the data to intersection controller or data platforms.
