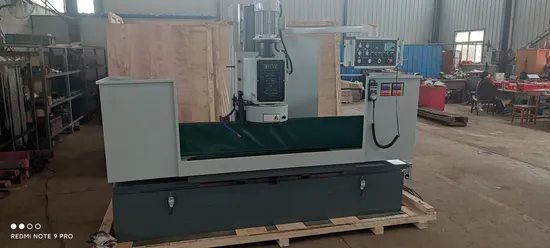

Cylinder Block& Head Surface Grinding and Milling Machine-3m9735c

Product Description

Cylinder block& head surface grinding/milling machine
Model: 3M9735A*100;
Max prcessing length: 1000mm;
Max processing width: 350mm;
Max processing height: 600mm;
The vertical moving distance of grinding wheel plate: 120,
The vertical moving distance of grinding wheel head: 0
Working table speed: 40-900mm/min;
Working table dimensions: 1000*500mm
Motor power: 2.2kw
Overall dimenstions: 2220*1050*1930mm
Model: 3M9735A*130;
Max prcessing length: 1300mm;
Max processing width: 350mm;
Max processing height: 600mm;
The vertical moving distance of grinding wheel plate: 120,
The vertical moving distance of grinding wheel head: 0
Working table speed: 40-900mm/min;
Working table dimensions: 1300*500mm
Motor power: 2.4kw
Overall dimenstions: 2530*1050*1930mm
Cylinder Block Grinding Machine-3M9750
SPECIFICAITION:
Workable size 1500*1500mm
Processing maximum length 1500mm
Processing maximum width 500mm
Processing maximum height 800mm
Maximum bearing weight of workable 600KG
Grinding segment tray diameter 500mm
Vertical movement travel of grinding segment tray (manual operation) 15mm
Hydraulic worktable travel speed scop 40-900mm/min
Main shaft motor speed(frequency converter speed regulating) 150-1000r/min
Main shaft motor power 7.5KW
Hydraulic oil pump motor power 1.5KW
Wheelhead rapid fluctuating power of motor 0.75KW
Cooling motor power 0.12KW
Net weight of machine tool 6000kg
Gross weight of machine tool 7000kg
Size of packing box 5650*1760*2650
Cylinder block grinding/milling machine-3M9735B
Description:
Cylinder body bushing boring machines are repairing machine tools with high
Efficiency. They can be used for boring master bushing and bushing of engine
And generator's cylinder bodies in automobiles, tractors and ships. If necessary,
The flywheel hub bore and bushing seat hole can be also finely bored.
Model: 3M9735Bx130
Dimensions of working table: 1300x500mm
Max length of processing: 1300mm
Max width of processing: 350mm
Max height of processing: : 800mm
The vertical moving distance of grinding wheel plate: 60mm
The vertical moving distance of grinding wheel head: 800mm
Moving speed of working table: 40-900 mm/min
Motor power: 2.4kw
Overall dimenstions: 2530*1050*1850mm
Model: 3M9735Bx150
Dimensions of working table: 1500x500mm
Max length of processing: 1500mm
Max width of processing: 350mm
Max height of processing: : 800mm
The vertical moving distance of grinding wheel plate: 60mm
The vertical moving distance of grinding wheel head: 800mm
Moving speed of working table: 40-900 mm/min
Motor power: 2.4kw
Overall dimenstions: 2530*1050*1850mm
