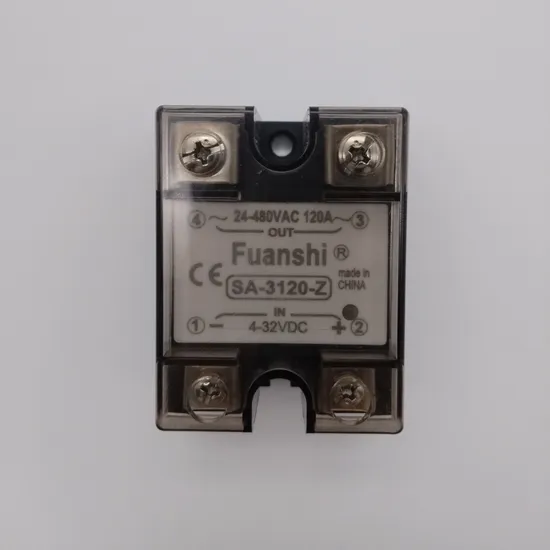

High-Performance 380V 120A Solid State Relay with Protective Cover SSR

Product Description

Product Description
Industrial Class Single Phase Solid State Relay with Protection Cover
Product Parameters
1. Features and advantages:
• Opto-isolated input stage, TTL level compatible input, DC or pulse triggering mode.
•Safe insulation voltage between input, output and bottom shell higher than 2000V, safety components approved by CE UL.
• No contact, no mechanical moving parts, no spark, no action noise, vibration resistance, long life.
• Small dead zone voltage, small harmonic interference (Z type), with internal RC absorption circuit.
• High power, AC working current 300A, working voltage 220-380V full range.
•Large-capacity industrial-grade products use thyristor chips and imported German low thermal resistance copper-ceramic bonding (DCB) baseplate.
2. The stable and reliable performance of the product comes from excellent devices and advanced production processes
• DCB technology (copper-ceramic bonding substrate).
• A large horse pulls a small cart, a reliable design of large-capacity silicon wafers.
• The industry's first "thermal fatigue loading" cycle test method.
• The flexible thermal pad effectively reduces contact thermal resistance and overcomes stress.
• China's first solid-state relay dynamic parameter test system.
China's power module process manufactures high-power SSRs, with a nominal current of 500A, and uses the third-generation new technology of copper-ceramic bonding (DBC).Whether it is an inductive load or a resistive load, the voltage and current impact and product reliability indicators have reached the international advanced level.

					Solid State		Heat sink	Appearance
Encapsulation	S				Square		Matching radiator model	Dimensions (mm)
	H				Rectangle
AC working voltage		2			220VAC
		3			380VAC
			25		25A		B20	60*45.8*80
			30		30A		B30	82*45.8*80
			40		40A		B50	95*45.8*80
							B20-3	160*135*50
			60		60A		B60	140*45.8*80
			80		80A		B80	160*45.8*80
							B227	250*227*150
			100		100A		B140	250*128*137
			200		200A		B200	320*155*180
			300		300A		B300	310*250*125
			340		340A		B300	310*250*125
			360		360A		B360	360*250*125
							B360	360*250*125
			400		400A		B360/90	360*250*125
			500		500A		B375	375*400*280
			600		600A		B475	475*400*350
			800		800A		B475	475*400*350
			1000		1000A		B475	475*400*350
How it works				Z	Zero pressure type
				P	Phase Shift Type
Note: When the current exceeds 10A, a heat sink is required. When the current exceeds 30A, a heat sink with a suitable heat dissipation area and air cooling or water cooling is required. Matching heat sinks B20~B80 are single-phase heat sinks; B140~B360 are three-phase heat sinks; B90 is a three-phase two-control heat sink. Square solid-state dimensions: 60X38×18.3mm, installation hole distance 47.5mm, rectangular solid-state dimensions: 94×30X42.7mm, installation hole distance 80mm.
Ordering example: SA-240-Z means the package form is square type, the working voltage is 220VAC, the effective working current is 40A, and the working mode is zero-voltage type. HA-3100-P means the package form is long strip, the working voltage is 380VAC, the effective working current is 100A, and the working mode is phase shift type.
