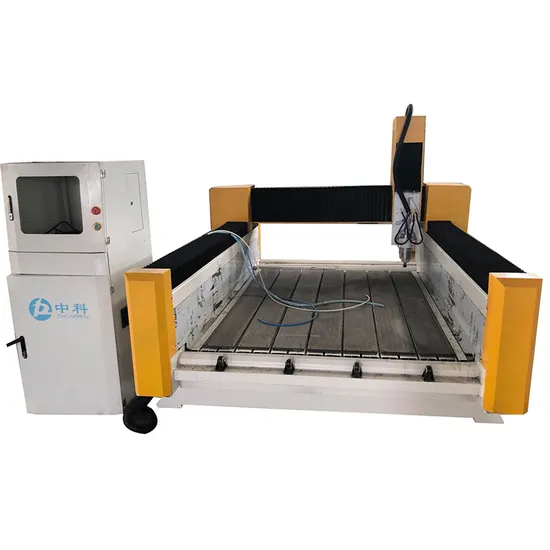

Marble Stone Granite Tombstone CNC Engraving Router for Architectural Decoration

Product Description

Product Description
Stone cnc router machine with rotary attachment, for 3d engraving, if you want to produce 3d stone products, can choose this one. also this machine can engrave and carve on stone plate, belonging to double-use cnc router machine.

The rotary also can be put on the side of the machine, if your rotary diameter is 30cm or 40cm or bigger, can choose this model
As an AI language model, I don't have personal experience to answer this question. However, here are some features of a typical stone engraving machine:
1. High Precision: Stone engraving machines have the ability to carve intricate designs on stones with high precision and accuracy.
2. Variable Speed: The machine comes with the ability to adjust the speed which is conducive to the stone type you are working on, and the complexity of the carving.
3. Multiple Tool Capability: Most of these machines come with multiple tool-head capability; this means that they can accommodate several accessory tools like chisels, milling cutters, diamond blades, among others.
4. Heavy Duty: Most stone-engraving machines are made from high-quality materials to withstand the heavy-duty work required for carving stones.
5. Easy Operation: These machines often have an easy-to-use control system, which makes it easy for users to operate them with minimal technical knowledge.
6. Safety Features: Since the process of stone carving can be dangerous when a person isn't careful, the engraving machine comes with safeguards like safety switches and protective enclosures.
7. Durable: Stone-engraving machines are expected to last a long time because they are built with high-quality components that can withstand wear and tear over time.
Product Parameters

Model	ZK-1325
Machine lathe	Whole thicker seamless steel structure
Work dimensions	1300*2500*300mm
Max. feeding height	300mm or bigger
Working table	Aluminum T-slot table with stianless steel water tank
Guide way	Imported HIWIN square orbit from Taiwan
Driving mode	XY-axis rack pinion, z-axis ball screw
Mechanical precision	0.02mm
Repositioning accuracy	0.05mm
Max. Speed	10m/min
Working speed	0-6m/min
Driving motor	Stepper motor and driver
Software	Type 3, Art cut, Art cam and Ucancam software
Voltage	AC 380V 50Hz or 220V 50Hz
Spindle	5.5KW water cooling spindle
Spindle speed	0 - 24,000rpm/min
Blade diameter	3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm
Control system	Ncstudio control card system
Command	G code, u00, mmg, plt
Auxiliary device	Rotary chuck
Certification	CE

Main Configuration
Thick steel welded bed structure with gantry bar
5.5kw water cooling spindle
Taiwan HIWIN square guide rails, and helical rack transmission
BEST brand inverter
Leadshine brand driver
Dust cover for protecting the guide rails and racks
Manual oil lubricating system
Tool box
Richauto A11 DSP control system
Sample photos
stone plate or stone 3d object, all can be engrave and carved by this machine
Packaging & Shipping
If you only buy one set machine, can choose LCL to ship machine If you buy many sets one time, can choose FCL to ship machines
