Xuvol Customized Excavator Loader Sugarcane Mobile Wheel Machine Hydraulic Electric Control Rotating Wood Rotator Grab Clamp Timber Tree Grab Log Grapple

Product Description

Grapple Description
Rotating log grapple wood Timber Hydraulic material handing grabber loader truck grab XUVOL 200S-4Z
Timber hydraulic grapple 360 rotating OEM/ODM 4.3m WOOD Grapple for 45TON 48TON Excavator wheeled hydraulic material grabber


Successful Application

Welcome OEM/ODM!

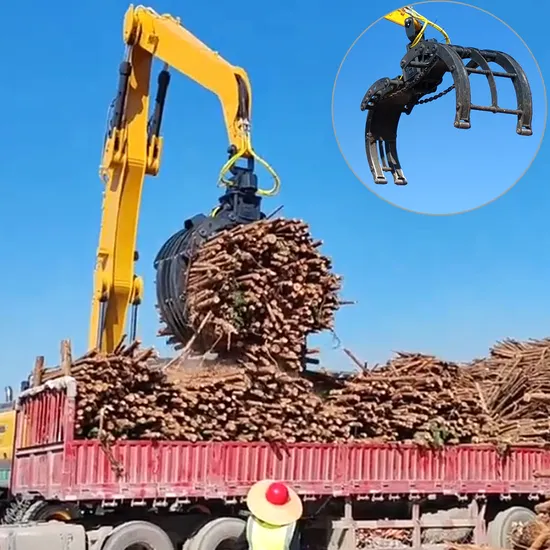

XUVOL 200S-4Z Double Cylinder Hydraulic Rotating Log Grapple is the first batch hydraulic grapple whichin stalled on the large wheeled hydraulic material grabber.
It is suitable for construction scenarios such as loading and unloading wood stock yardsscrap steel plant, port terminal which need to handing. it has the ability to capture largequantities at one time and the advantage of fast loading and unloading speed.
1. Model: XVJ-200S-4Z-480WGM;
2. Weight: 2885kg;
3. Form: double cylinder, central single connecting rod, hugging type;
4. Control rotation interface: M24X1.5H heavy duty/16-18MPa;
5. Crane requirements: 5-15r/min (10r/min is recommended, and the excavator cooperates with the control);
6. Control opening and closing interface: M42X1.5H heavy duty/28MPa;
7. Opening and closing requirements: 3-5S for one trip (3S is recommended, and the excavator cooperates with the control);
8. Oil drain interface: M16X1.5H/connected to the oil tank;
9. Effective clamping cross-sectional area: 2.8m²;
10. Special oil cylinder treatment: advanced surface treatment of piston polished rod, seals resistant to low temperature;
11. Welding requirements: implement JB/T 5943-1991 general technology for engineering machinery welding parts;
12. Painting requirements: negotiated design, in compliance with JB/T5946 regulations;
13. Transportation requirements: wooden box packaging and transportation or consultation on design
Grapple Technical Paremeters

Wood Timber Log Hydraulic Grapple 200S-4Z
	2885kg
Type	double cylinder,mid-mounted single connecting rod,hugging type
Control rotation interface	M24X1.5H heavy duty/16-18MPa
Speed requirement	5-15r/min(10r/min is recommended,controlled by the excavator)
Control opening and closing interface	M42X1.5H heavy duty/28MPa
Opening and closing requirements	3-5S for one trip(3S is recommended,and the excavator cooperates with the control)
Oil drain interface	M16X1.5H/connected to the oil tank
Holding areas	2.8m²
Special treatment of the oil cylinder	the surface of the pistonrod is treated with high frequency,and the seals are low-temperature resistant
Welding requirement	implement JB/T5943-1991 general technology for engineering machinery welding parts
Painting requirement	customized,incompliance with JB/T5946 regulations
Transportation requirement	wooden box for packaging and transportation or designated by negotiation

Packaging & Shipping
wooden box or Iron case for packaging and transportation or designated by negotiation
About XUVOL
Guangxi Xuvol Construction Machinery Equipment Co.,Ltd.
XUVOL is the manufacturer of forestry equipment/logging equipment.
Main products with hydraulic log grapples/harvester heads/grapple saws/tree shears/array disk saw/ forest telescopic boom/timber crusher/8 wheeled forwarder/8-wheeled harvester head/log crane/weeding attachment, tree planting attachment, tree fertilizer attachment, etc

Let us talk more! We sincerely hope that we could establish a win-win and friendly, longterm partnership.
Welcome you to Contact Us right now to get more info and best price!

WORK SHOP
FAQ
1. Who are we? We are professional manufacturer of forestry machinery and excavator attachment since 2007. Support Customized, provide your best solution for your requirement. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3. What can you buy from us? Hydraulic log grapples/harvester heads/grapple saws/tree shears/array disk saw/ forest telescopic boom/timber crusher/8 wheeled forwarder/8-wheeled harvester head/log crane/weeding attachment, tree planting attachment, tree fertilizer attachment, etc

4. Why should you buy from us not from other suppliers? 15+ years R&D forestry machinery and excavator attachments manufacturing experience. Factory with laser cutting robots and many other professional production machine. With 5 production lines, CE certificate. OEM and ODM available. 5. What services can we provide? Accepted Delivery Terms: CFR,CIF,EXW,CPT; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Western Union; Language Spoken:English,Chinese
