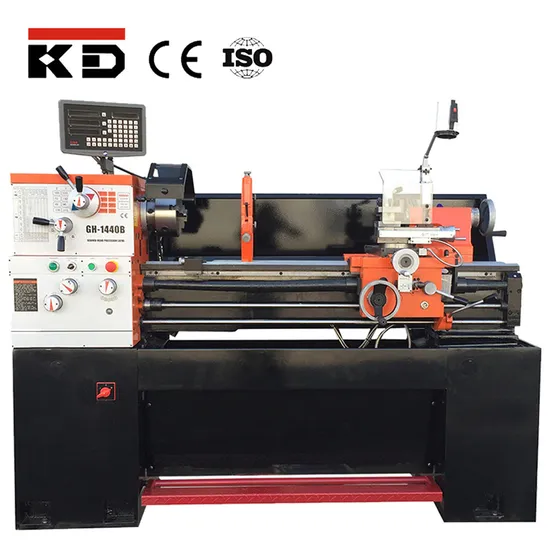

Wholesale Manual Haven Horizontal Metal Lathe Machine From Factory (GH-1440B)
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GH-1440B
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
500mm
Spindle Bore
80mm
Spindle Nose
D8
Range of Speed
36-1600rpm
Transport Package
3600X1300X1800mm
Specification
3000x1100x1380mm
Trademark
kaida
Origin
Zhejiang
Production Capacity
1200/Year
Product Description
| MODELS | GH-1440B |
| CAPACITY | |
| Max.swing over bed | Ф356mm |
| Max. swing over gap | Ф506mm |
| Max.swing over slide | Ф220mm |
| Width of bed | 206mm |
| Distance between centers | 1000mm |
| SPINDLE | |
| Spindle nose | D1-4 |
| Spindle bore | Ф38mm(1-1/2") |
| Taper bore of spindle | M.T.NO.5 |
| Steps of spindle speed | 8 |
| Range of spindle speed | 90~1800rpm |
| FEED | |
| Range of longitudinal feeds | 0.043~0.653mm/rev |
| Range of cross feeds | 0.015~0.220 mm/rev |
| THREADING | |
| Whit-worth threads | 4-112TPI(40kinds) |
| Metric threads | 0.40-7.0mm(37kinds) |
| LEADSCREW | |
| Diameter of leadscrew | Ф22mm (7/8") |
| Pitch threads of leadscrew | 4mm or 8TPI |
| TAILSTOCK | |
| Travel of tailstock quill | 120mm(4-3/4") |
| Taper bore of tailstock quill | M.T.NO.3 |
| Diameter of Tailstock Quill | 45mm |
| POWER | |
| Power of main motor | 2.4kw(3HP) |
| Coolant pump motor power | 0.04kw(0.055HP) |
| Net weight/Gross weight(1000mm) | 750/880kg |
