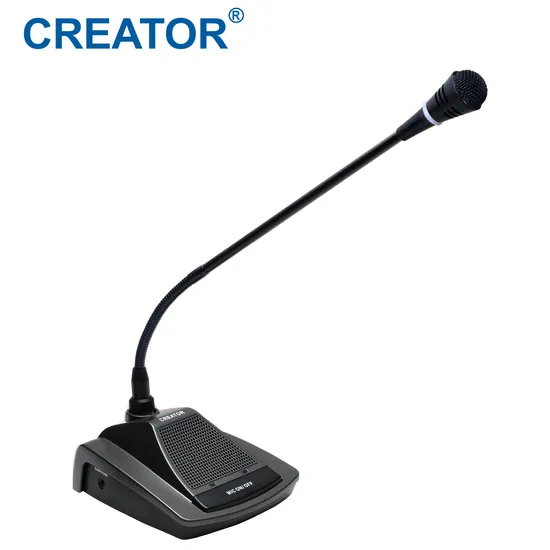

Creator Tabletop Digital Simple Discussion Gooseneck Microphone Audio Conference System with Built-in Loudspeaker

Product Description

Product Overview
CR-M4102/04B is a desktop type pure discussion unit. The operation is simple, just press the speak request button to speak. Built-in speaker and headphone jack, clear sound, a volume control knob.
Features
· Using special 8 core high density aviation connector.Heart-shaped directivity capacitance pickup has double color indicating light. Speaking as red, applying as green.
· The knob plug rod.
· With loudspeaker, earphone jack and a volume adjusting knob.
· With howling suppression function, when microphone is turned on, the native speaker automatically shut down.
· Chairman unit has priority function of full control of meeting order. Connection position of chairman unit is not restricted.
· Unit is a passive device, the power is supplied by system and the input voltage is 24V.
· With 2 meters of cable.
· "Hand in hand" or "T" type connection mode.
Specifications

Model No.	CR-M4102/04B
Power supply	The controller power supply
Unit interface	8 core aerial line special interface
Maximum power dissipation	3W
Headphone output	8 - 32Q, 3.5mm miniature socket
Power of loudspeaker	2W
Microphone type	Capacitive diaphragm
Directional characteristics	Heart
The signal-to-noise ratio (S / N)	> 80dB
Crosstalk attenuation	> 80dB
Distortion	< 0.10%
Frequency response	60Hz-18kHz
Equivalent noise	≈20dB SPL
The maximum SPL	3% threshold
Sensitivity	- 22dBv/Pa
Color	Dark grey

Panel Drawing
System Diagram

Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.
