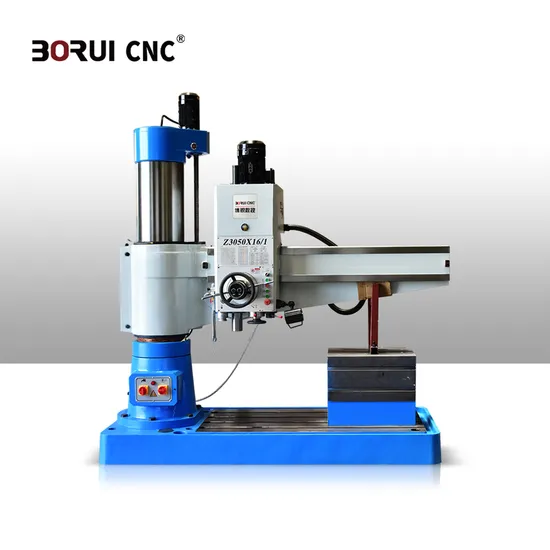

Z3050 Manual Radial Arm Drilling Machine Industrial Radial Drill Radial Drilling Machine

Product Description

Z3050 Manual Radial Arm Drilling Machine Industrial Radial Drill Radial Drilling Machine
Product Description
Z3050*16 Hydraulic radial drilling machine is a double column, all hydraulic radial drilling machine. With widely use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.
The main performance characteristics:
1 . Counter balanced spindle
2 . Pressurized lubrication system
3 . Hydraulic clamping with push button controls
4 . Hydraulic preselected shifting of feeds and speeds
4 . Hardended and precision ground ways
5 . Hardened and ground gears and shafts
6 . Heavily ribbed cast iron base and arm
The main specification:

Specifications	UNITS	Z3050×16
Max. drilling dia	mm	50
Distance from spindle nose to table surface	mm	320-1220
Distance between spindle axis and column surface	mm	350-1600
Spindle travel	mm	315
Spindle Cone		No.5
Spindle speeds range	r.p.m	25-2000
Spindle speed step		16
Spindle feeding range	r.p.m	0.04-3.2
Spindle feeding step	r/min	16
Rocker rotary angle	°	360
Main motor power	kw	4
Movements motor power	Kw	1.5
Weight	Kg	3500
Overall dimensions	mm	2500×1070×2840

Standard Accessories:
Frequency Inverter Main Motor,
Stroke Motor,
Coolant system,
Cube Table ,
Digital Readout of Speeds,
Frequency Inverter,
Work Lamp,
Tools and Toolbox
Optional Accessories:1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
