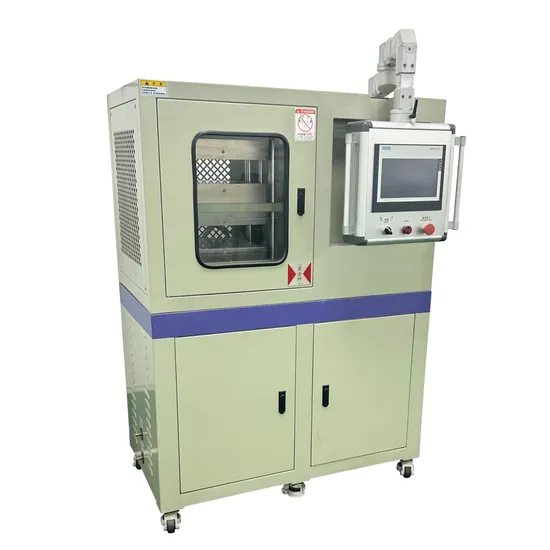

400 * 400 mm Laboratory Plate Vulcanizer 30/50/100t Curing Press for Rubber Vacuum Vulcanizing Press Machine

Product Description

Product brief introduction
Applied range:
* Mainly used in rubber and its products, plastic and its products polyolefin, PVC, film, coil, profile production and polymer blending, pigment, color masterbatch, stabilizer and other industries, its main use is to test raw materials after molding, its physical properties change, contrast. Such as: the dispersion of color, light transmission, the gloss of the surface of the material, whether there are black spots, its strength, plasticity, hardness and so on after auxiliary materials.
* It is suitable for factory acceptance of the physical properties of suppliers' raw materials, comparison of similar products, and development of new products by research and development departments of colleges and universities. It can be used as a reference before mass production.
Typical application:
* Raw materials gel (fisheye), black spot, stain detection
* Raw material tablet, sample preparation
* Physical property test
* Material research and development
Working principle:
* The raw material is put into the mold, the rubber material is shaped at the rated pressure and temperature, and the product reaches the melting point through a certain time, so as to obtain the product with certain physical properties.

NO.
1	Model	Tetrastyle
2	Maximum pressure	50 T
3	Mold opening mode	Automatic ascent and descent
4	Temperature	Room temperature ~300 degrees
5	Pressure	The pressure size can be arbitrarily adjusted within the range according to the experimental requirements, easy to use and easy to operate
6	Temperature control mode	Temperature control PLC control, with high precision sensor, with automatic temperature compensation function to ensure temperature balance
7	Control mode	PLC control, touch screen operation, manual mold opening, manual mold closing, manual steam exhaust, automatic constant temperature, manual time control, automatic pressure
8	Electrothermal sheet material	Adopt high quality high carbon steel after grinding quenching and electroplating hard chromium
9	Working level	Two layers, one for heating, one for cooling
10	Timer	0~99 min~9.9hr
11	Heating plate area	400×400mm
12	Type of heating	Electrical heating
13	Cooling plate area	400×400mm
14	Type of cooling	Water cooling
15	Safety protection	The safety protection device has overtemperature protection
16	Power supply	3∮, AC380
17	Weight	About 800 kg
18	Volume	About 1000*550*1600 mm

After-sales service In-sale:
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the latest progress.
After-sales:
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
