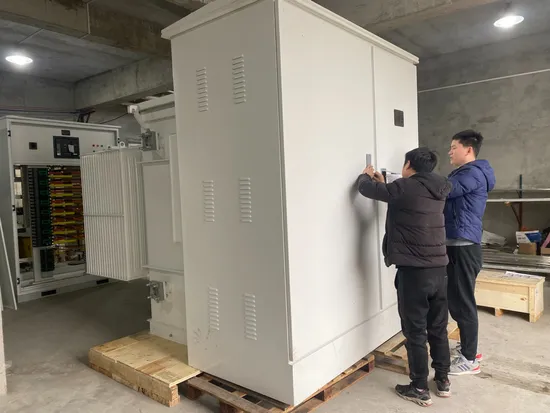

2500kVA 13.8kv/415V-240V Pad Mounted Transformer American Type Transformer 60Hz Dyn11 or Yyn0

Product Description

Shanghai People electric Industrial Co., Ltd. was founded in 2014 with a registered capital of 6 million yuan, located in Fengxian District, Shanghai, covering an area of 1000m2. We are specialized in the R & D and production of low-voltage distribution boxes. We have passed the certification of ISO9001 quality management system, ISO14001 environmental management system and iso45001 occupational health and safety management system. The products of low-voltage distribution boxes have obtained the national 3C certificate and can produce distribution boxes with protection grade of IP65 and below.
Shanghai People electric Industrial Co., Ltd. is Schneider's technology and business partner. Wer are authorized to produce Schneider PRISMA E switchgear. Mean while, our company has independently developed low-voltage distribution box products such as intelligent self coupling decompression start cabinet (which can automatically control the water pump according to the water level), soft start cabinet, frequency converter control cabinet, PLC control cabinet, explosion-proof start cabinet, electricity meter box, pz30 lighting control box, etc. the products are widely used in factories, hospitals, schools, data centers and other industries.
Shanghai People electric industrial Co., ltd is authorized to sell ABB transformers, ABB American type subtations.
We have senior electrical industry experts with strong technical development ability, mature workers' technology, complete set of production and testing equipment, reliable quality of components and accessories supply chain and fast supply speed. Therefore, our products have reliable quality and short delivery time.
They chose us: Baidu cloud computing center, PetroChina Iraq,Sudan Bandi group ,Sheraton Hotel,etc.
Welcome to us!
Three phase American Pad mounted transformer 50KVA-3500KVA technical data

Capacity	50KVA ~3500KVA
Phase	Three Phase
Primary Voltage	4.16KV,12.47KV,13.2KV,13.8KV,24.94KV,34.5KV(Customizable)
Secondary Voltage	480V,440V,420V,415V,400V(Customizable)
Frequency	60HZ
Cooling way	ONAN
Tape changer	5Position,2*±2.5%(Customizable)
Temperature Rise	60ºC
Primary Insulation	Well Bushing
Secondary Connection	Standard Spade Connectors
Efficiency	Meet DOE 2016 Standard
Insulation	Mineral oil
Liquid level Gauge	Available
Temperature Gauge	Available
Fill Valve	Available
Drain Valve w/ Sampler	Available
Protection fuses	Bavonet fusing
Load break Switch	2 or 4-Position load break switch
Front	Dead Front Primary, Live Front Secondary
Winding material	Copper
Ambient Temperature rating	-5ºC-40ºC
Sound Level	<60dB
Housing	Coated steel, Tamper Resistant w/Padlockable lift-up Lid
Mounting	Pad Mount
