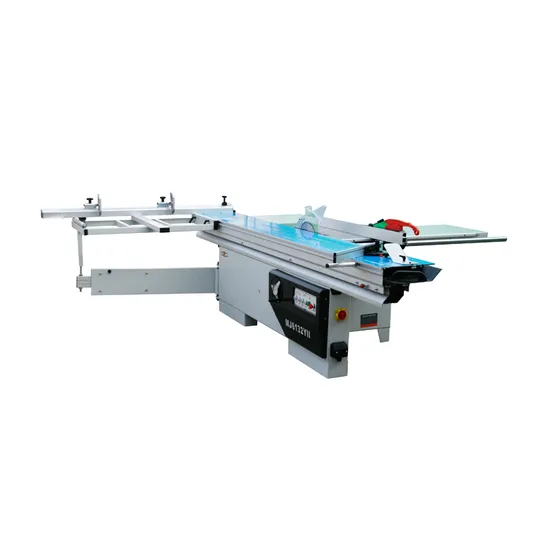

ZICAR sliding table saw attachment table sliding circular saw MJ6132YII
Basic Info.
Model NO.
MJ6132YII
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Main saw blade titling angle
45-90°
Height of cut
80mm (45°Max 55mm)
Main saw blade speed
4000/6000rpm
Scoring saw blade speed
7000rpm
Main motor
4.0kw or 5.5kw
Vice-motor
0.75kw
NW/GW
750kgs/850kgs
Package size
2050*1110*1130mm
Transport Package
Stretch Film
Specification
3200x3150x900mm
Trademark
Zicar
Origin
China
HS Code
8465910000
Production Capacity
500
Product Description
ZICAR woodworking machine Sliding Table Saw MJ6132YIIFeatures:
The main function of the precision panel saw is to use its structural characteristics, that is, to use two fixed saw blades-the scoring saw blade and the main saw blade, to manually push the mobile work made of the aluminum profile carrying the processed board parts The table moves back and forth to realize the sawing of the processed plate.The main structural feature of the precision panel saw is the use of two saw blades, namely the main saw blade and the scoring saw blade. When cutting, the scoring saw cuts ahead of time, and first cuts a groove with a depth of 1 to 2 mm and a width of 0.1 to 0.2 mm thicker than the main saw blade on the bottom surface of the processed board to ensure that The edge of the cutting edge will not tear when the main saw blade is cut, so as to obtain good cutting quality. The scoring saw blade has a small diameter, usually around 120mm, and is driven by a separate motor. It is required that the scoring saw blade and the main saw blade are aligned in the same vertical plane. The diameter of the main saw blade is generally 300-400mm, which is driven by the main motor through the V-belt.
Specifications:
| Overall dimensions | 3200x3150x900mm |
| Sliding table size | 3200x375mm |
| Length of cut | 3100mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Height of cut | 80mm (45°Max 55mm) |
| Saw blade diameter | 300mm |
| Scoring blade diameter | 120mm |
| Main saw blade speed | 4000/6000rpm |
| Scoring saw blade speed | 7000rpm |
| Saw spindle diameter | 30mm |
| Scoring spindle diameter | 20mm |
| Main motor | 4.0kw or 5.5kw |
| Vice-motor | 0.75kw |
| Main saw blade titling angle | 45-90° |
| NW/GW | 750kgs/850kgs |
| Package size | 2050*1110*1130mm 3250*425*290 |
Detail Photos:
Packing pictures:
Company Information:
