Hot Sale 16mm Planetary Gear Box/12V 24V DC Motor/High Torque Low Speed Gear Motor/Low Noise

Product Description

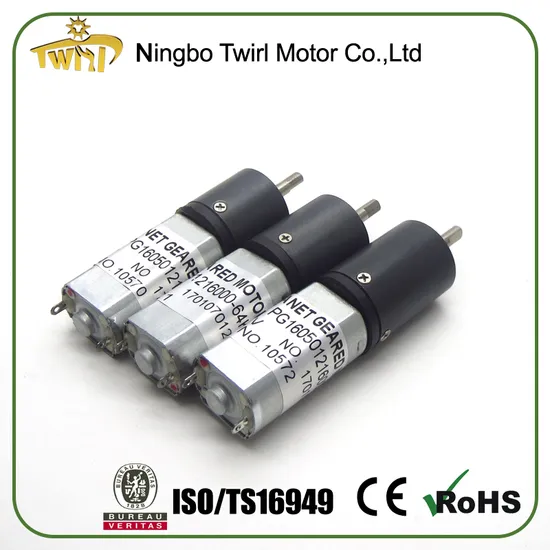

16mm micro planetary gear motor PG16M050 Series
Dia:Ø16×(42.9~53.9)mm
Rated torque:1kg.cm~4kg.cm
Description Product description

Product name	PG16050 series,16mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel planet gearhead
Housing material	Steel
Geartrain material	Steel , Powdered Metal
Bearing at output shaft	Sleeve bearing
Lubricant	Grease for high-low temperature
Axial play	<0.3mm
Radial play	<0.05mm(5mm from mounting face)
Rotation direction	CW/CCW reversible
Backlash at no-load	<1°
Operating temperature range	-40 °C~+100°C
Noise (DB)	<55DB measured at 30cm distance
Lifetime	1000+ hours (varies by application)
OEM & ODM Service	Available
Certificate	CE,ROHS,SGS,TUV,IATF16949

Packing and delivery Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.
*shockproof foam packing *50 pcs each layer
*3 layers each carton
*carton meas.:30*28*13cm *150pcs/ctn
*N.W.:12kgs
*G.W.:11.2kgs
*recycled wooden pallet *stretch film
*binding tape
*Shipping mark on each carton and pallet
CERTIFICATE

FAQ Q:1.What kind of motors you can provide? A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors. Q:2. Can you send me a price list? A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide. Q:3. What's the lead time for regular order? A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity. Q:4. Is it possible for you to develop new motors if we can provide tooling cost? A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples? A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
