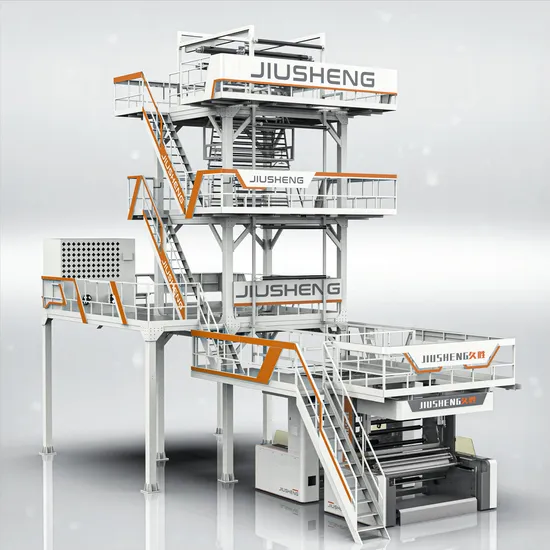

Automatic Computerized Quick Speed Self-Adhesive Film Blowing Machine with IBC System

Product Description

Jiusheng recommends blown film machine
↓ ↓ ↓
main parameter

Model NO.	JSM3-1600		Automation	Automatic
Computerized	Computerized		Machine Weight	20t
Certification	patent certificate		Max. Output	620kg/h
Gear Box	30kw/37kw/30kw		Main Motor	173#200#173#
Screw Type	High Speed Screw with Force Feeding		Die Diameter	400mm
Thickness of The Film	0.02-0.15mm		Rewinder	Center Gap Winding System
Air Ring	Italy Syncro Newest Model		Automatic Counter Flow Air Ring	Optional
Automatic Flat Scan Thickness Measuring	Optional		IBC System	Within
Horizontal Traction Rotary	Within		EPC System	Within
After Service	24-Hour Serviceafter-Sales		Installation,Commissioning,Training	on-Site / Remote Video
Transport Package	Shrink Film or Wooden Case		Specification	High speed low waste
Trademark	Jiusheng		Origin	china
HS Code	8477301000		Production Capacity	100sets /Year

Process Flow Diagram
Automatic ABC(IBC)3-Layers Co-extrusion Center Gap Winding System Film Blowing machine

Model	Unit	SJ45/75/65/1600	SJ50/75/75/1800
Suitable material		LDPE/LLDPE/SEBS/POE/EVE
Film layer		3 layers
Film thickness	mm	0.02-0.15
Max film width	mm	1400	1600
Max output	kg/h	200	250
Screw diameter	mm	φ45/φ75/φ65	φ50/φ75/φ75
Screw L/D ratio		32:1	32:1
Die head diameter	mm	φ400	φ450
Air ring Diameter	mm	φ1480	φ1480
Main motor power	kw	22/55/37	30/55/55
IBC system	probe and IBC system
EPC system	ECP auto edge position control system
Screen changer	Non-disassemble manual screen changer
Winding method	Automatic back to back surface friction winder
Tension control system	Automatic
Overall Dimension (L*W*H)	mm	12500*7000*11500	12500*7000*11500

Jiusheng Product Album
Our Equipment in Factory
The Patent Certificate We Obtained
Main Product Series
1.barrier film

2.composite base film


3.protective film


4.self-adhesive film

Production Site

Spare Parts and Service


Frequent Q&A
Q1: How about after-sales service? How long is the machine warranty? A1: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time and how many machines can you produce per month? A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds? A4: We need to recruit agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.
