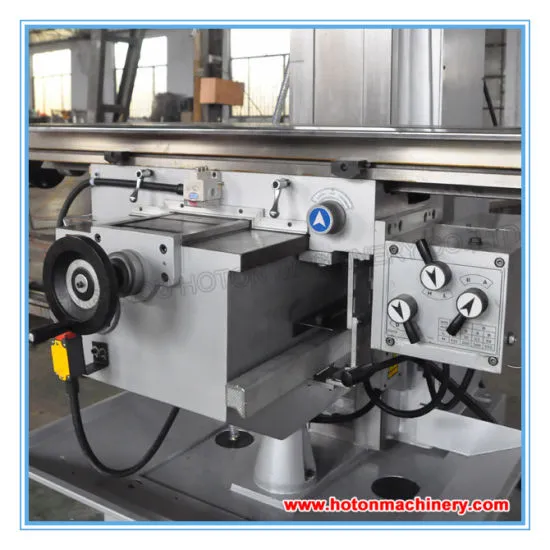

Servo Motor Vertical Knee-type Milling Machine XL5036
| US$1,000.00-11,000.00 | 1 Piece (MOQ) |
Basic Info.
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1325X360mm
Long Travel(mm)
750mm
Cross Travel(mm)
320mm
Vertical Travel(mm)
460mm
Motor
5.5kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
10 PCS/Month
Product Description
VERTICAL MILLING MACHINE FEATURES:
1.High rigidity. capable of heavy load cutting.
2.Driven by AC servo motor
3.Table automatic feed on X,Y,Z
4.Automatic rapid feed X,Y,Z
SPECIFICATIONS:
| SPECIFICATION | UNIT | XL5036 | XL5036C | XL5036CL |
| Table size | mm | 1325X360 | 1600X360 | |
| T-slots(NO./Width/Pitch) | 3/18/70 | |||
| Longitudinal travel | mm | 750 | 1100 | 1300 |
| Cross travel | mm | 320 | ||
| Vertical travel | mm | 460 | 450 | |
| Table feed (X/Y/Z) | mm/min | 30-750/20-500/15-375 8steps | ||
| Table rapid speed(X/Y/Z) | mm/min | 1200/800/600 | ||
| Spindle taper | 7:24 ISO50 | |||
| Spindle speed range | r.p.m | 50-1475 | ||
| Spindle speed step | steps | 12steps | ||
| Spindle travel | mm | 70 | ||
| Max. swivel angle of vertical milling head | ±30° | |||
| Distance between spindle nose and table surface | mm | 50-510 | 50-500 | |
| Distance between spindle axis and column guideway | mm | 378 | ||
| Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
| Main motor Power | kw | 5.5 | ||
| Overall dimensions (L×W×H) | mm | 1800×2100×2150 | 2245×2100×2150 | 2520× 2100×2150 |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
