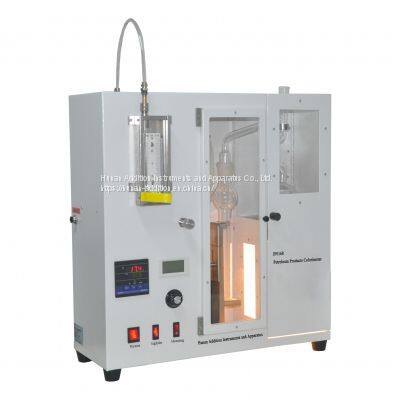

Lubricant High Vacuum Distillation Tester 　
Product model: JF0165A
Product Introduction
This instrument is suitable for measuring high-boiling point products such as wax oil and lubricating oil. The boiling point of liquid refers to the temperature at which its vapor pressure is equal to the external pressure. Therefore, the boiling point of liquid changes with the change of external pressure. The pressure in the system lowers the boiling point of the liquid.

Technical Parameter
1. Applicable standard: SH/T0165
2. Vacuum pressure: 50～760mmHg
3. Pressure display mode: precision vacuum gauge
4. Pressure detection: thin film vacuum pressure gauge
5. Temperature control method: digital display PID temperature controller
6. Connection method: quick connector
7. Power of the whole machine: 2.5KW
8. Furnace temperature regulation: high-quality high-power solid-state voltage regulator
9. Pressure regulation: high-precision needle valve
10. Working power supply: AC220,240V/50,60Hz
11. Instrument size: 600*360*610mm
12. Net weight: 46KG
Main Feature
1. One-piece structure, easy to operate;
2. The precision needle type regulating valve adjusts the degree of vacuum;
3. Digital display of vacuum pressure;
4. The film vacuum pressure gauge converts the analog signal into a digital signal;
5. High-power solid-state relay control output, the heating furnace can be lifted up and down;
6. The glass test tube meets the standard requirements;
7. There is an infrared warmer at the bottom of the receiver;
8. Low noise vacuum system with venting function;
9. The shell is made of cold-rolled steel plate, and the surface is treated by electrostatic spraying, which has good rust resistance and is easy to clean;
10. Security door protection;
11. It is very convenient to contact the control box;
12. Microcomputer controller, PID function, digital display temperature, accuracy 0.1℃, PT100 temperature probe;
