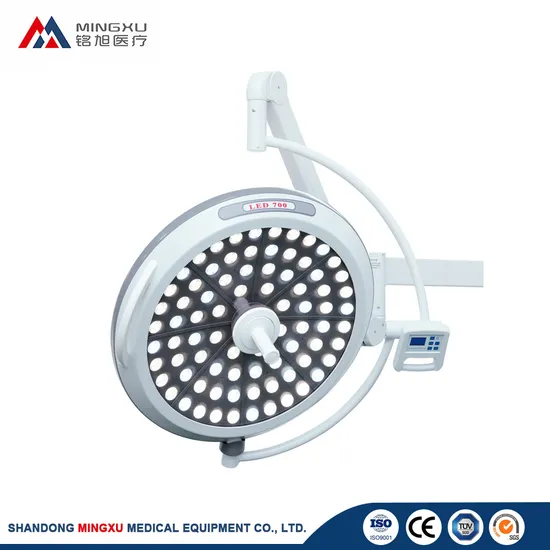

CE ISO Medical Device Examination Surgical Equipment LED Operating Lamp

Product Description

Product Specifications

Lamp head model	MXLED 700	MXLED500
Number of lamp beads	80	48
Center Illuminance(LUX)	130000-160000 ( adjustable)	110000-130000 (10 levels adjustable)
Color Temperature(K)	4300±500 ( adjustable)	4300±500 (adjustable)
Color Rendering Index (Ra)	≥95%	≥95%
Spot diameter (mm)	160-300	160-300
Light beam depth (mm)	≥1200	≥1200
Irradiance(W/m2)	≤400	≤400
Head temperature rise(ºC)	≤1	≤1
Temperature rise in the surgical working area	≤2	≤2
Operating radius(mm)	≥2200	≥2200
Working radius(mm)	600-1800	600-1800
Supply voltage	220V±22V 50HZ±1HZ	220V±22V 50HZ±1HZ
Input Power	150VA	150VA
Average life of lamp(h)	≥60000	≥60000
Lamp power	1W	1W
Optimum installation height(mm)	2800-3000	2800-3000

Product Configuration List

Number	Name	Quantity	Remark
1	Base	1
2	Cross arm	2
3	360° Balance Arm	2
4	Lamp holder	2
5	lamp holder lamp beads	128
6	Handle	2	2 extra
7	Hexagon wrench s=3,s=4,s=5,s=6,s=8	1 each
8	Small flat screwdriver	1
9	Phillips screwdriver	1
10	Certificate	1
11	User Manual	1
12	Product warranty card	1

FAQ 1.What is an LED surgical light?
An LED surgical light is a surgical light that is illuminated by an LED light source. Compared with traditional surgical lights, LED surgical lights have better lighting effects and energy utilization efficiency, while reducing pollution to the environment.
2.What are the characteristics of LED surgical lights?
LED surgical lights have many characteristics. First, it has a better lighting effect. Second, it is more energy-efficient and has a longer service life than traditional surgical lights. In addition, LED surgical lights are small in size, more flexible in operation, and more in line with the requirements of medical modernization.
3.Which medical places are LED surgical lights suitable for?
LED surgical lights are suitable for a variety of medical places. This includes operating rooms, ICUs, and emergency rooms. In these places, LED surgical lights can provide clearer lighting, allowing medical staff to operate more attentively and accurately.
4.How to use LED surgical lights correctly?
It is very important to use LED surgical lights correctly. First of all, the lamp head should be accurately positioned for precise lighting. At the same time, doctors and nurses should be familiar with the use of LED surgical lights and position the light according to the needs of the operation. During use, pay attention to keeping the lamp head dry to prevent unclear light.
5.Does the LED surgical light require maintenance?
LED surgical lights require proper maintenance to ensure they are in normal working condition. This includes regular inspection and cleaning of the lamp head, regular replacement of the bulb, etc. In addition, regular maintenance and inspection are required for mechanical parts and electronic circuits. During use, if any problems are found, the maintenance personnel should be contacted in time for processing.
