Aacsr AAAC AAC ACSR Acar Steel Cable Power Aluminum Overhead Power Bare Conductor
| US$0.35-2.00 | 500 Meters (MOQ) |
Basic Info.
Model NO.
ACSR
Application
Overhead
Conductor Material
Aluminum
Sheath Material
Bare
Insulation Material
Bare
Material Shape
Round Wire
Range of Application
Overhead Cable
Certification
ISO9001, CE, CCC
Brand
Jinshui
Transport Package
Drum
Specification
1.1*1.1
Trademark
JINSHUI
Origin
Zhengzhou Henan
HS Code
4107961636
Production Capacity
50000km/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
400.000kg
Product Description

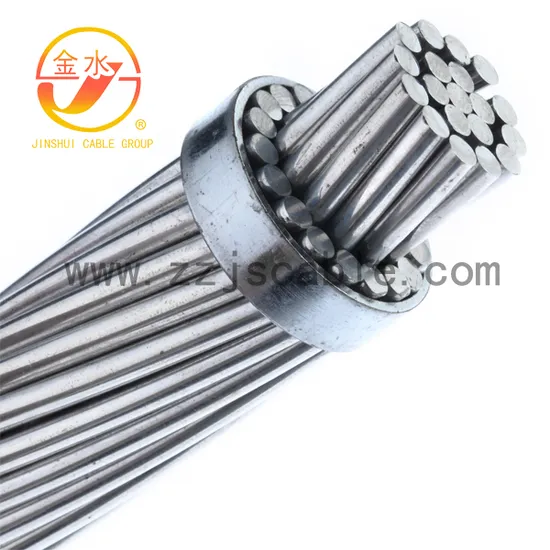

SpecificationsACSR consists of a galvanized steel core surrounded by concentric layers of aluminum wire,if required, ACSR conductor
ACSR(Aluminum Conductor Steel Reinforced) is widely used in the overhead power distribution system of our country.
We can supply this conductor according to different recognized standards,such as IEC61089,BS215,ASTM B232,CSA C49,DIN48204,JIS C3110, customer special specification also can be satisfied.
The data sheets below show the most common standards,British standard.
British Sizes BS215
| Code name | Nominal Area | Stranding&Wire Diameter | Approx Overall Diameter | Sectional Area | Approx Weight | Breaking Load | DC Resistance | |||
| Al | Steel | Al | Steel | Total | ||||||
| mm2 | mm | mm | mm | mm2 | mm2 | mm2 | Kg/km | KN | Ohm/km | |
| Squirrel | 20 | 6/2.11 | 1/2.11 | 6.33 | 21.0 | 3.50 | 24.5 | 84.7 | 7.87 | 1.3659 |
| Gopher | 25 | 6/2.36 | 1/2.36 | 7.08 | 26.24 | 4.38 | 30.62 | 106 | 9.61 | 1.0930 |
| Ferret | 40 | 6/3.00 | 1/3.00 | 9.00 | 42.41 | 7.07 | 49.48 | 172 | 15.20 | 0.6766 |
| Rabbit | 50 | 6/3.35 | 1/3.35 | 10.05 | 52.88 | 8.82 | 61.70 | 214 | 18.35 | 0.5426 |
| Mink | 60 | 6/3.66 | 1/3.66 | 11.00 | 63.1 | 10.50 | 73.6 | 254.9 | 21.67 | 0.4540 |
| Horse | 70 | 12/2.79 | 7/2.79 | 13.95 | 73.37 | 42.83 | 116.20 | 538 | 61.20 | 0.3936 |
| Dog | 100 | 6/4.72 | 7/1.57 | 14.15 | 105.00 | 13.50 | 118.50 | 394 | 32.70 | 0.2733 |
| Wolf | 150 | 30/2.59 | 7/2.59 | 18.13 | 158.10 | 36.80 | 194.90 | 726 | 69.20 | 0.1828 |
| Goat | 300 | 7/3.71 | 7/3.71 | 26.00 | 324.3 | 75.70 | 400.0 | 1488.2 | 135.13 | 0.0891 |
| Bison | 350 | 7/3.00 | 7/3.00 | 27.00 | 381.7 | 49.50 | 431.2 | 1442.5 | 121.30 | 0.0758 |
| Zebra | 400 | 54/3.18 | 7/3.18 | 28.62 | 428.90 | 55.60 | 484.50 | 1621 | 131.90 | 0.0674 |
