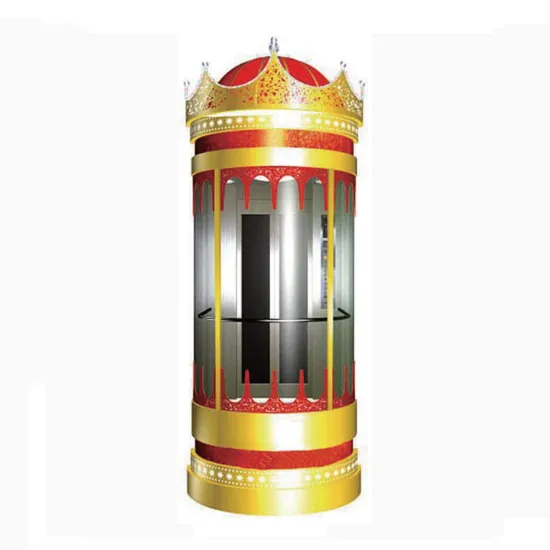

Outdoor Circular Installation of Sightseeing Villa Ladder

Product Description

Product Description
We can produce customized elevators according to your requirements to cater to your buildings or decoration needs. For example:
1. Save space: can customize elevators for some special mini shaft or no shaft buildings accordingly
2. Humanize design: can customize COP, LOP and the position of the door handle according to the weight and height of people in different countries.
3. Decoration customized: can provide different decoration schemes and styles including post-modern style, modern style, traditional Chinese style, traditional European style, and future technical style to cater to customers' individual needs.Product Parameters

Capacity (Kg)	Person	Speed (m/s)	Entrance(mm)	Clear car dimension (mm)	Caroutstide dimension (mm)	Clear hoistway dimension (mm)	Machine room dimension (mm)	Pit depth (mm)	Overhead Height (mm)	Pit reaction load (KN)		Machine room reaction load(KN)		Rated power (KW)	Power supply capacity	Lead-in wire
Q	NO.	V	OP	CWXCD	SWXSD	HWXHD	MWXMDXMH	PD	OH	R1	R2	R3	R4	KW	KVA	MM2
450	6	1.0	700	1200x1100	1252x1266	1800x1800	1800x1800x2200	1500	4400	50	40	20	8	3	3.6	4
		1.5						1600	4500					4.8	5.8	4
630	8	1.0	800	1400x1100	1452x1266	2000x1800	2000x1800x2200	1500	4400	68	54	24	10	4.3	5.2	4
		1.5						1600	4500					6.8	8.2	6
800	10	1.0	800	1400x1350	1452x1516	2000x2050	2000x2050x2200	1500	4400	76	60	28	12	5.4	6.5	6
		1.5						1600	4500					8.6	10.3	6
		1.75						1700	4600					9.6	11.5	6
		2.0						1800	4700					11	13.2	6
1000	13	1.0	900	1600x1450	1652x1616	2200x2200	2200x2200x2200	1500	4400	90	72	32	15	6.4	7.7	6
		1.5						1600	4500					10.7	12.8	6
		1.75						1700	4600					11.7	14	6
		2.0						1800	4700					13.4	16.1	10
		2.5						2000	4900					17	20.4	10
		4.0						3800	5900					27.7	31.5	10
1250	16	1.0	1000	1800x1550	1852x1716	2400x2300	2400x2300x2200	1500	4400	105	80	36	18	8.5	10.2	6
		1.5						1600	4500					13.5	6.2	10
		1.75						1700	4600					14.8	7.8	10
		2.0						1800	4700					17	20.4	10
		2.5						2000	4900					22	26.4	10
		4.0						3800	5900					34.6	39.6	10
1350	18	1.0	1100	1900x1600	1952x1766	2500x2300	2500x2300x2200	1500	4400	115	90	40	20	9.3	11.2	6
		1.5						1600	4500					14.9	17.9	10
		1.75						1700	4600					16.3	19.6	10
		2.0						1800	4700					18.7	22.4	10
		2.5						2000	4900					23.4	28.1	10
		4.0						3800	5900					36.8	44.2	10
1600	21	1.0	1200	2000x1700	2052x1866	2600x2400	2600x2400x2200	1500	4400	136	105	48	26	11	13.2	6
		1.5						1600	4500					17.5	21	10
		1.75						1700	4600					19	22.8	10
		2.0						1800	4700					22	26.4	10
		2.5						2000	4900					27.5	33	10
		4.0						3800	5900					34.2	41	10

CustomizedPassager Elevator - special customizationThe company has a professional department mainly responsible for custom lifts, the most experienced engineers and designers, they have participated in the national "One Belt, One Road" project, the company has the most experienced engineers and designers.We will consider and propose a solution according to the style of the customer's building decoration and the customer's wishes and needs, and create a lift to the customer's satisfaction.
Our Advantages
Control Cabinet
Own brand host, independent technology.
Asia FUJI Elevator adopts VLSI and microcomputer control system has greatly reduced the size of the control cabinet, which can be achieved by using only a small type of control cabinet regardless of the floor level.Permanent Magnet Synchronous Master
Adopt Suzhou Montenelli brand Adopt Italian original technology, permanent magnet synchronous gearless traction machine, zero pollution, zero maintenance, quiet and environmental protection, energy saving up to 30-45% than traditional elevators.Safety Components
The safety control system which requires low environmental conditions, small size, lightweight, uses advanced network control technology, and has a self-diagnostic function,not only has high stability and strong anti-corrosion ability, also makes maintenance easier. Under the control of the system, the failure rate of the elevator is greatly reduced, which not only operates reliably, but also saves energy, and with a complete brake control component (speed limiter, safety gear, guide shoes, bumper, tensioner) to ensure The long-term normal operation and safety protection function of the safety control system are provided.
Our Projects
On the one hand, as a kind of special machine equipment, once the quality is not good, the cost of later maintenance will increase greatly for you. So we do ONLY provide the one unified set of configurations in high-standard, while when you check with some other suppliers, you may find they could give different kinds of options in order to just ask customers to choose them, then, HERE IS THE STANDARD QUALITY THEY CAN OFFER? They are just eager to easily meet customers' price ranges, which is why they do provide different types of configurations. They could just easily change the different brands on main components to reduce their prices when customers ask for discounts, that is also why there are some differences in price or specifications between our offer and some others. For us, we do only offer all our customers, the same unified High-Standard configurations.
Company Profile
Asia Fuji Elevator(Linyi) Co., Ltd. is a joint-stock enterprise integrating R&D, design, production, sales, installation and maintenance of all kinds of elevators. Located in Pingyi County, Linyi City, Shandong Province, it is a key construction project attracting investment in Linyi City in 2015, with a total area of 300 Mu and a total investment of 1.3 billion yuan. Products include passenger elevator, sightseeing elevator, household elevator, business elevator, medical elevator, villa elevator, cargo elevator, car elevator,escalator and sidewalk.
At present, the company has won the honors of "national quality inspection stable and qualified products", "national quality integrity excellent enterprise"and "high tech enterprise", and has won 11 technical patents in the elevator industry. In 2016, the company's leadership creatively positioned the company's development direction as"one-stop product service provider in the field of vertical transportation". marking Fuji Asia's official march into the field of three-dimensional garage, contributing to Asia's rich land strength in solving the "urban disease "of "parking difficulty".
Production Process
The company has established an effective management system in marketing, manufacturing transformation, installation, maintenance and construction, quality control, after-sales service, etc., and various related testing instruments, manufacturing and construction equipment and process equipment are fully equipped, which are in line with elevator manufacturing and installation
Certifications
Certifications & Patents
Asia Fuji Elevator has experienced more than ten years of wind and rain, and has obtained the 3A qualification certificate of one-
stop service of production, manufacturing, installation and maintenance approved by the state.
After Sales Service
After Sales Service
1. 24 hours by 7 Days Online Support in English Speaking
2. On-site Installation by a professional team
3. Systematic Packing & Modular installationFAQ
Q1. Why choose us?
A: Asia Fuji Elevator is a joint-stock enterprise integrating elevator R & D, design, production, sales,
installation and maintenance. Famous brand, already be confirmed by many customers Domestic and overseas Sample projects are customers voice for our quality.
Q2. What information is absolutely needed before asking for price?
A: 1. How many persons? ( 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
2. How many floors/ stops/ doors?
3. What's the shaft size? (width by depth)
4. Is there a machine room on the top of the shaft?
Q3. How can we guarantee the good quality of your products?
A: In during the production process we will inspect all purchased and produced parts and take a record after put in crates, before shipping out we will do the final inspection and mock up the cabin and sling set, this part takes photo and video as record to make customer being at ease.
Q4. What's the payment term?
A: 30% in advance, 70% after customers inspection, before loading
Q5. What about the packaging?
A: All elevator parts will be packed into solid wooden cases. Some parts will be wrapped by the film so that guarantee the machinery part not be destroyed after a long time of transportation.
Q6. How to do with the elevator installation and maintenance?
A: We can send engineers to guide the installation and then train the workers about maintenance in the future. But in most situations, local workers can finish this work with our guidebooks and technology support, or you can ask the local professional elevator engineers to do this job, This can save much money for our customers. Of course, you can get support from our factory at any time.
Q7. What's your guaranteed time?
A: We can provide 18 months guarantee period, during this time, we will send free replacements to you. our service has no time limit.
