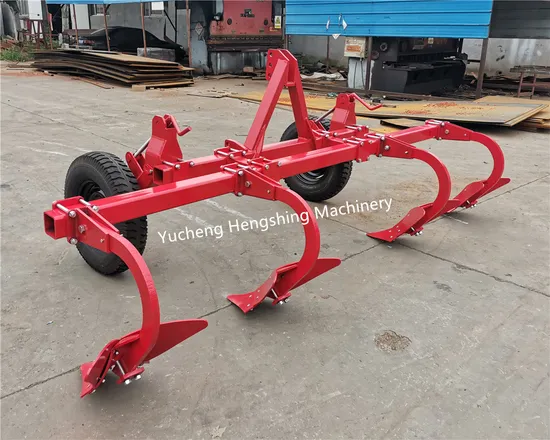

Farm Machinery Tractor Furrow Ridging Cultivator
| US$880.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
3QL-4T
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE, ISO
Color
Yellow
Model
3ql-4t
Working Width
3200mm
Ridging Height
150-250mm
Matched Power
80
Transport Package
Iron Box, Iron Frame
Specification
High quality steel
Trademark
YCHS
Origin
Yucheng City, Shangdong Province
HS Code
84322900
Production Capacity
500sets/Month
Product Description
PRODUCT DESCRIPTIONThis 3QL series agricultural equipment ridging plough furrow ridger tractor ridger is suitable for ridging after the tillage in the farm field. It consists of heavy duty tubular box frame. This ridger is suitable for ridging after the tillage in the field for potato, beans, vegetable etc. It is convenient to adjust the ridging height and the ridging rows and space between each ridge. It can be easily spaced (widened or narrowed) as per the crop requirement. The rubber tire can be moved easily.This machine is reasonable for construction,conveniently to transport, easy to adjust, and conveniently to use and maintain.
Advantages:
1) The disc blades are made after the heat treatment in the material of 65Mn spring steel.
2) The discs can be notched and plain to your choice.
3) There two series of this disc ridger. Two discs and four discs respectively that make 1 or 2 ridging rows.
You can choose the nos of disc to meet the ridging rows need.
PRODUCT SPECIFICATION
| Model | Unit | 3QL-3T | 3QL-4T | 3QL-5T |
| Working width | Mm | 2500 | 3200 | 3900 |
| Ridging spacing | Mm | 700~900 | 700~900 | 700~900 |
| Ridging height | Mm | 150~300 | 150~300 | 150~300 |
| Machine weight | kg | 390 | 470 | 560 |
| Tractor power required | Hp | 50-90 | 90-120 | 120-160 |
| Linkage type | Tractor 3 point hitch | |||
