PC Construction Extrusion Line PC Hollow Grid Sunshine Sheet Machine

Product Description

This line consists of :

Item	Description	Data
1	SJ120/35 Single screw extruder with stainless steel hopper	1 set
2	Screen exchanging unit for PC	1 set
3	Melting gear pump for PC	1 set
4	SJ45/30 Single screw extruder for UV layer	1 set
5	Melting gear pump for uv	1 set
6	T-type Die head (2100mm*4-6mm)	1 set
7	Vacuum calibrating board	1 set
8	cooling table	1 set
9	The first haul off machine with 12 rollers	1 set
10	edge cutting device	1 set
11	5000mm oven	1 set
12	Corona treating unit	1 set
13	up and down sides, double position film laminating device	1 set
14	The second haul off machine	1 set
15	Tranverse cutting machine (length-settled)	1 set
16	material conveyor+6000mm discharge table	1 set
17	eletrical cabinet	1 set
	other accessory machine parts
18	500kg mixing and drying machine	1 set
19	AC-25 water chiller	1 set
20	15kw air compressor	1 set
21	sheet crusher	1 set

Double Wall/Triple Wall/Multiwall Polycarbonte PC hollow roofing Sheet Extrusion Line extruder machine This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.
Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.
The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.
Hollow Sheets Specifications: Sheet width: 600mm-700mm-1050mm- 1220mm-2100mm-2300mm, Sheet thickness is 4mm-6mm-8mm-10mm-12mm. Sheet walls: double walls , three walls, 4 walls and more etc.
Application:
1) Sunshades for stadium and bus shelters
2) Lighting for corridors, passages and subway entries
3) Bank ATMs
4) Sound and heat insulation for construction such as: houses
5) Canopies for agriculture greenhouse, zoos
6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express ways & highways
7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.

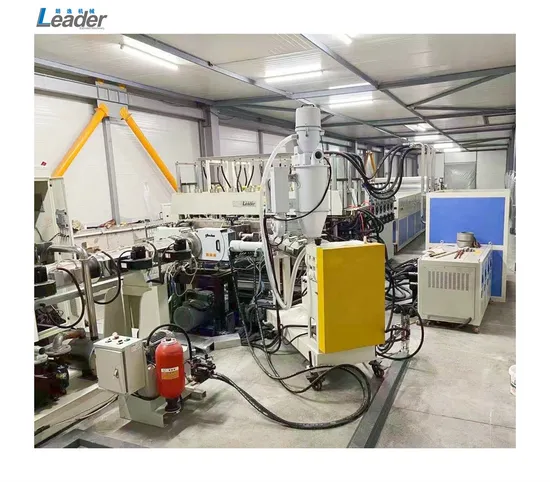

MACHINE PICTURES:
PACKAGING & SHIPPING: Qingdao Leader Machinery Co.,ltd will help you calculate the detailed dimension and the number of Container. And we promises delivery the machine within duration. It is based on our experience of manufactruing machine and management.
