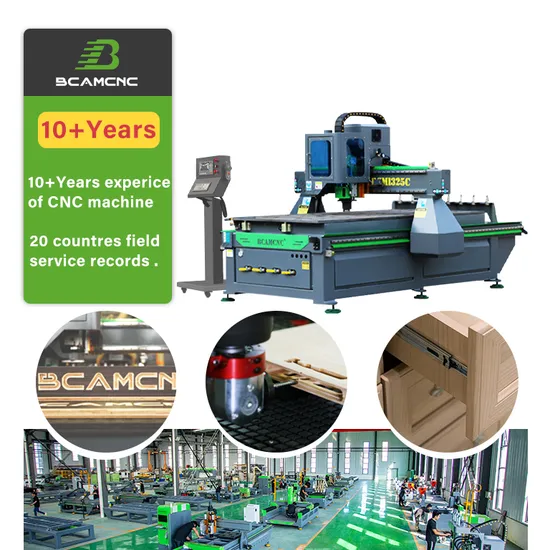

Best 3 Axis Machine 3D Machines 1325 CNC Wood Router for Woodworking Furniture

Product Description

Product Description
ADVANTAGES
1.BCAM CNC routers with linear ATC CA Series are engineered and built to fit your application as well as your budget. Our CA series CNC routers with linear ATC are available in large and small table configurations and are capable of handling a wide variety of milling, drilling, contouring, boring, shaping, grooving, routing and engraving projects. All of our CNC routers are built to be rugged, dependable and are backed with superior customer support. 2.Our cnc router machine bed is heavy duty body,Only when the bed is stable, the machining accuracy of the spindle will be high. 3.Vacuum + t slot table Larger width, better adsorption effect.
4.Unique auto tool changer system can change tools alternatively, tool sensor to compensate the tolerance of tool length.
5.World-class China Leadshine servo motor and driving system ensures machine to run with fast speed and low noise.
6.DDCNC controller- enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.
SPECIFICATION

Product Name	CNC Wood Router CA Series
Working Area	1325//1530/2030/2040/Customizable
Spindle Power	9kw air cooling spindle/HQD
X,Y,Z Traveling Positioning Accuracy	±0.02/2000mm
Table Surface	Intergrated vacuum + T-solt table clamping System
X,Y,Z Rail and Trasmission	XY axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate	80m/min
Max. Working Speed	60m/min
Spindle Speed	6000-24000RPM
Drive Motors	Leadshine Servo Drive System
Working Voltage g Environment	AC220v/380v/50/60HZ/1/3 phase
Command Language	G Code
Operating System	China DDCNC control system
Interface	USB
Software Compatibility	Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment	Temperature:-20ºC~45ºC Relative Humidity: 5%~75%
Cutting thickness	According materials

Machine Details
MACHINE DETAILS
CA Series CNC router spindle
Spindle motorHQD 9KW(12HP) Electro spindle
with 8-position Automatic Tool Changer(ISO30).
Operating system
DDCNC controller- enabling this product
to accomplish multi-layer 3D job, cutting,
engraving, milling, all at ease.
Anti-collision emergency stop button
Press this button quickly to achieve protective measures.
Lubrication system
Auto lubricating system, one touch canfinish periodic maintenance easily.
Tool settina probe
Automatic tool setting instrument.
Vacuum adsorption table
Vacuum table using high-density(1.3-1.45g/cm) material with great suction strength, comfortably accommodating all sizes of work piece.
