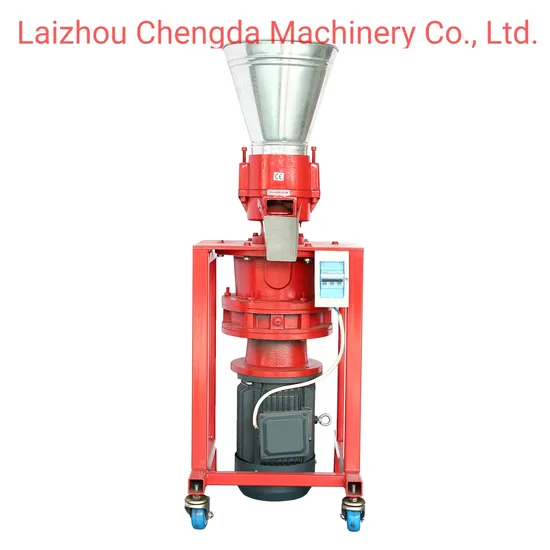

Mini Small Feed Pellet Press Machine with Ce

Product Description

40-100kg/h chicken mini feed pellet mill machine


Introduction of Our Pellet Mill:
These pellet machines are the new designed products of our company and the main parts of the fodder machinery system. Now this animal feed pellet machine is mainly used to make feed pellets for rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on.The key parts are made of alloy steel that make it very strong and malleable.Now our machines have been exported to Western Europe,North America,Southern Europe,Eastern Europe Asia Africa and so on.




Specification

1 This series machine can be powered by both diesel engine and e-motor.
2 We adopt the new design of direct connection of motor shaft and he main shaft that overcome the loose defect of belt connecting as long time using.

Model No.	Power(E-motor) 50HZ	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120B	2.2kw220v 1phase	30-60	20-30	80/100	2.5-10mm	75*32*62
KL120B	3kw 380v 3phase	50-100	30-50	80/100	2.5-10mm	75*32*62
KL150B	4kw 380v 3phase	100-200	50-100	95/115	2.5-10mm	77*34*68
KL200B	7.5kw 380v 3phase	200-300	110-140	200/230	2.5-10mm	100*43*95
KL230B	11kw 380v 3phase	300-400	150-190	290/320	2.5-10mm	114*47*97
KL260B	15kw 380v 3phase	400-600	220-280	330/360	2.5-10mm	120*52*107
KL300B	22kw 380v 3phase	600-800	280-320	410/450	2.5-10mm	127*52*107

How to Choose A Perfect Flat Die Pellet Machine
Flat die pellet mill takes the circular motion as the principle. The press roller, main shaft and die mould are of high quality alloy steel. There are common two design of flat die pellet machines: rotating rollers with stationary die or running die with stationary rollers. Though the two kinds of pellet mills can both make wood pellets and feed pellets, there is slightly difference. Roller driven pellet machine is more suitable for making biomass pellets, especially for making hardwood pellets; die driven pellet making has good performance in making feed pellets and soft wood pellets. Then, let us talk about the engine of pellet press. There are two choices, flat die pellet mill with electric motor and flat die pellet mill with diesel engine. Electric pellet mill is more energy-saving and environmental protection, while you must make sure there is enough electricity in your pellet making sites .


Homemade Pellets Used as Stove Fuel
Home pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials. The fuel it used can be made at home. Here are a few tips for you to spend less money making the stove fuel if you choose a pellet stove for heating.
You have to prepare raw materials along with a flat die pellet mill which is used to press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.






Buying a Portable Pellet Mill on Line for Wood Pellet Stove
There is a growing interest of making wood pellets at home by one's own since the price of wood pellets becoming more and more expensive as the revealing advantages of biomass pellets. Therefore, it is convenient for you to purchase a portable pellet mill on line in to make the pellets for your family. Here are some suggestions.

What is the terms of warranty and spare parts?
Our pellet mills are guaranteed with 1 year quality assurance from the date of goods shipment.



When we are talking about spare parts for a pellet mill, by and large, we are talking about die, roller and bearing. Practically, that how often you will need to renew spare parts is depending on what raw material you are making pellets from. Apparently, compared with making straw pellets, pellet mill that are making wood pellets requires a higher frequency for changing spare parts. We supply clients with high quality pellet mill dies, rollers, bearings and other parts. Clients are available to order at anytime. If you need spare parts, please contact me or test message.


Our factory packaging and shipping








Do I have to go to your factory for atutorial of learing how to operate a pellet mill?

It's not necessary. As 7/24 email and phone call service is available, I am ready to answer your any specific questions regarding to our machinery and pellet mill in particular. In addition, we prepare the teaching videos in terms of installation, lubrication, trial running, parts replacements and so forth.
