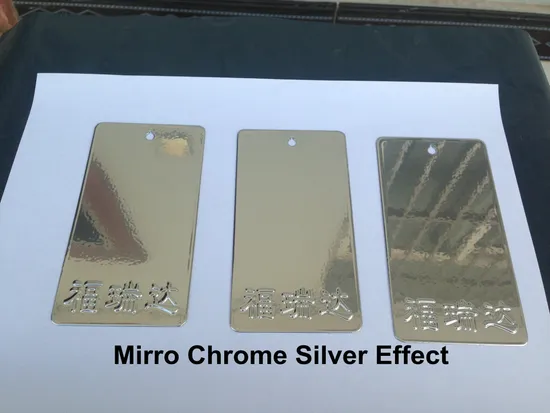

Mirror Chrome Spray Powder Coating Electrostatic Paint
Basic Info.
Model NO.
Florid
EINECS
48736485
Color
Black
Appearance
Powder
Main Raw Material
Epoxy
Method
Spray
Level
Finish Coat
Drying Method
Oven During
Certification
ISO14001, CCC, RoHS, ISO9001, MSDS
Substrate
Steel
Components
Pigment
Formation Mechanism
Drying
Material
Epoxy/Polyester Resin
Curing Condition
200c/15min
Surface
Smooth
Use
Metal Surface Coating
Transport Package
Carton Packing
Specification
Colorful
Trademark
Florid
Origin
China
HS Code
3907991090
Production Capacity
50000t/Year
Product Description
Product Description Powder coatings have advantages such as no organic solvents, environmental friendliness (compared to oil-based coatings), high material utilization, low energy consumption, and are easy to apply with low cost. They have good corrosion and weather resistance and are suitable for products and facilities with low requirements for corrosion and weather resistance. They have been widely used in many fields of manufacturing. Among them, polyester powder coatings are widely used in outdoor facilities such as buildings, automobiles, and transportation due to their excellent comprehensive performance and relatively low cost advantages. Currently, more than half of thermosetting powder coatings are prepared using polyester resin as the base material.
"Polyester-TGIC" is a series of polyester based powder coatings with the use of TGIC Designed for exterior or interior use. Offering excellent light and weatherability from a single coat finish on a variety of substrates. This series are available in a wide range of colors with different gloss and texture. Main properties:excellent UV resistance for exterior application;Good heat resistance Product Parameters Chemistry: Polyester-TGIC Particle size: Suitable for electrostatic spray Storage: Dry ventilation conditions below 30ºC Curing schedule: 200ºC/10minutes;190ºC/15minutes Specific gravity: 1.2-1,8g/cm3 up to colors TECH DATA SHEET Specific gravity (g/cm³, 25 ºC): 1.4-1.7
Particle size distribution: 100% less than 100 microns (adjustable according to special coating requirements)
Curing conditions: 200 ºC, 10 minS
| Testing items | Testing standards | Inspection indicators | ||
| High gloss | Semi Gloss | Matt | ||
| Impact resistance | GB/T 1732-1993 | 50kg.cm | 40kg.cm | 40kg.cm |
| Cupping test | GB 9753-1988 | 8mm | 7mm | 7mm |
| Adhesion | GB/T 9286-1998 | 0 Level | ||
| Bending test | GB 6742-1986 | 2mm | 3mm | 3mm |
| Hardness | GB/T 6739-1996 | 1H-2H | ||
| Heat resistance | GB 1740-1989 | >1000H | ||
| Weather resistance | 150ºC*24H | Excellent light retention, color difference ≤ 0.3-0.4 | ||
Detecting Instrucment
Certifications
