High Output Carton Wood Plastic Lump Box Barrel Drum PE Film PP Woven Bags Ton Jumbo Bag PVC ABS Pipe Medical Waste Heavy Duty Single Double Shaft Shredder

Product Description

Product Description

The single shaft plastic shredder machine is mainly used in handling PE PP PVC ABS lumps, pipe, baled film, etc.
This single shaft plastic shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
This plastic shredder machine has the advantages of stable running lower noise and big torque...
The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.
Shredder Features:
1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2) Siemens PLC control system with automatic overload protection and auto reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree. The blades are made of SKD11 and D2.
5)Each fixed blades has four cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed
7)Screen perforation is adjustable according to customers' requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

Model	SR-S600	SR-S800	SR-S1000	SR-S1200	SR-S1500
Shaft Length (mm)	600	800	1000	1200	1500
Shaft Diameter (mm)	220	400	400	400	400
Main Motor (KW)	18.5	37	45 / 55	55/75	75/90
Hydraulic Power (KW)	2.2	2.2	2.2	5.5	5.5
Rotary Blades (PC)	26	46	58	70	90
Fixed Blades (PC)	2	2	2	3	3
Capacity (kg/h)	200-300	400-600	700-1000	900-1200	1300-1600

Detailed Photos

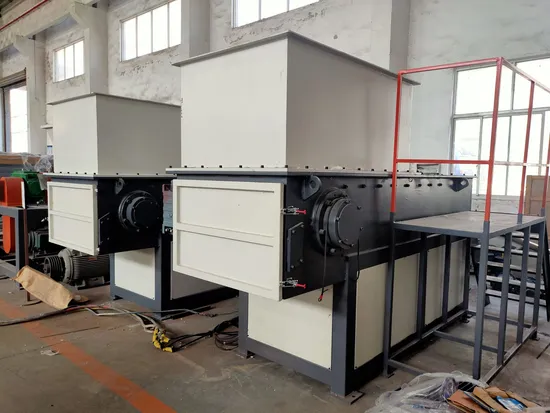

Single Shaft Shredder
4 angle blades could use for longer time.
Double shaft shredder
Double Shaft shredder with single shaft baldes for film, medical waste large output
Plastic Washing Machine and Granulating Machine available
Shipment for overseas customers
Welcome to contact us if you are looking for good quality plastic shredder and plastic recycling machines.
