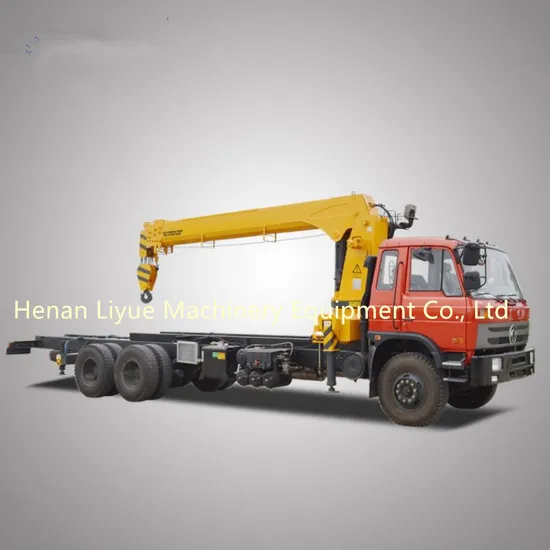

Popular Factory Telescopic Arm 10 Ton Truck Mounted Crane for Sale

Product Description

Sinotruck howo hohan 6x4 10 wheels 371hp dump truck with crane
Product Description

NOTE: The price is for crane part only!

Project		Unit	Value
Crane Dimension	Crane Model	---	SQ 10T
	Max. Lifting Capacity	kg	10000
	Max. Lifting Height	m	12.35
	Working Radius/ Span	m	2.5-12
	Rotation Angle	º	360
	Outrigger Span (Fully Extended)	mm	2280-5580
	Crane Weight	kg	3765
	Hydraulic Tank Capacity	L	160
Chassis Truck Data and Weight	Chassis Brand	---	Dongfeng
	Overall Dimensions (L*W*H)	mm	12000*2500*3980
	Cargo Body Dimensions (L*W*H)	mm	7500*2290*600
	Total Mass	kg	25000
	Rated Loading	kg	8805
	Front and Rear Axle Load	kg	7000/ 18000
	Drive Type	---	6*4 Left/ Right Hand Drive
	Emission Standard	---	Euro 3/ Euro 5
	Front/ Rear Suspension	mm	1250/3400,1250/3350,1250/3500,1250/3450
	Wheel Base	mm	4350+1300,4600+1300,4900+1300,5400+1300
Working Parameter	The Basic Boom Length	m	4.85-12.35
	Diameter of Wire Rope	mm	11
	Length of Wire Rope	m	80
	Speed of Sing Rope (No Load)	m/min	52
	Max. Lines of the Hook	Times	6
Travelling Parameter	Max. Travel Speed	Km/ h	85
	Max. Gradeability	%	30
	Min. Turning Diameter	m	15

Client Visit

Adhering to "good quality, competitive prices, fast delivery, and good after-sales service" in mind, we welcome customers from all over the world to visit us.

Product Process

Our Advantages


Pre-sales: We always try our best to fully understand customers' needs and therefore to develop several solutions for them to choose the most suitable machine. We offer free and professional consultation service to the engineering technical personnel and users from customers' sides. We can also provide free small parts within 2 years.
Sales Tracking: Our technician will follow up the installation and debugging in the whole process. After customer acceptance, we provide about 3-7 days free operation and maintenance training for customers.
After Sales: We provide 2 year's guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.
After Sales Service

2 Years extra long warranty service
1. Spare Parts
We will supply more than 15 kinds spare parts with the crane for free.
2. Artificial damaged fittings outside warranty
Customers bear part of the freight, we provide free accessories for customers.
3. More serious damage
We will send professional technicians to the customer for maintenance.
Certifications

Company Profile

Henan Liyue Machinery equipment Co., Ltd., located in Lankao County, Henan Province, is located in the middle of the Future Avenue of Industrial agglomeration area, is a trading and manufacturing combo.Established in 1980, our company covers an area of more than 66000 square meters and currently employs 320 people, including 30 professional and technical personnel, 15 senior technicians and 6 senior engineers. We have a large-scale cutting machine, bending machine, CNC cutting machine, copying cutting machine, plate rolling machine, square tube sewing machine, moving beam gantry milling machine, shot blasting machine and numerical control lathe and other equipments. Our company has launched 3T-25T truck cranes, truck mounted cranes and marine crane to fill the domestic blank market, and exported to more than 20 countries and regions such as South Africa and Angola market.We exported to more than a dozen countries and regions such as Thailand, Turkmenistan, Kazakhstan, Vietnam, Bhutan and so on. As the manufacturer, we accept OEM/ ODM orders..

FAQ

1 Are you manufacturer?
Yes, we are the manufacturer.
2 What kind of truck cranes do you produce?
We produce truck crane and truck mounted crane from 2.5T to 25T.
3 What kind of truck chassis do you use for cranes?
We use Dongfeng, T-King truck and the other Chinese chassis for our cranes.
4 What are your payment methods?
T/ T, L/ C, West Union, Paypal, Money Gram and Alipay.
5 What is the delivery time for the cranes?
The delivery time is within 40 days after we receive the deposit.
6 How can you transport the crane to us?
We will use transport the crane to you by 40 feet open top containers, flat rack container or bulk vessel.
7 How long can you supply for warranty?
We can supply Two Year warranty service.
8 How long did you start to produce the cranes?
We has been in producing truck cranes since 1980.
