Basic Info.





                                    Environment Temperature
                                    0ºC~45ºC


                                    Relative Humidity
                                    ≤85% Rh


                                    Output Voltage Level
                                    500V, 1000V, 2000V, 2500V


                                    Measurement Range
                                    0~19990mΩ


                                    Resolution
                                    0.01mΩ 0.1mΩ1.0mΩ 10.0mΩ


                                    Relative Error
                                    0~2000mΩ≤±5%±2D


                                    Transport Package
                                    Wooden Box with Wrapping Film


                                    Specification
                                    ISO9001, ISO14001, OHSAS18001


                                    Trademark
                                    United Electrical







    Product Description
                            Product Description:

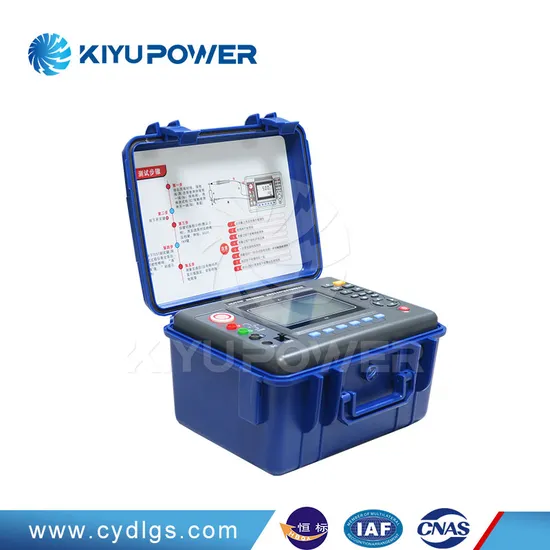

CYJY-624 Digital mega ohm meter is composed of medium and large scale integrated circuits. Large output power, high short circuit current, many output voltage level(there are four voltage levels).
Product Features:
1.Large output power, strong load capacity and anti-interference ability. Use proportion method to measure the low resistance, so the voltage drop does not affect the test accuracy.
2.Battery powered, automatically convert the measurement range.
3.Output short circuit current can be measured directly, no need to estimate on load measurement.
Product Parameters:
               | Using Condition | Environment Temperature | 0ºC~45ºC |
           | Relative Humidity | ≤85% RH |
           | Output Voltage Level Measurement Range
 Resolution
 Error
 | Output Voltage Level | 500V, 1000V, 2000V, 2500V |
           | Measurement Range | 0~19990MΩ |
           | Resolution | 0.01MΩ, 0.1MΩ, 1.0MΩ, 10.0MΩ |
           | Relative Error | 0~2000MΩ≤±5%±2d |
           | 2000MΩ~19990MΩ≤10%±2d |

    Company Profile:
  Kiyu Power is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
