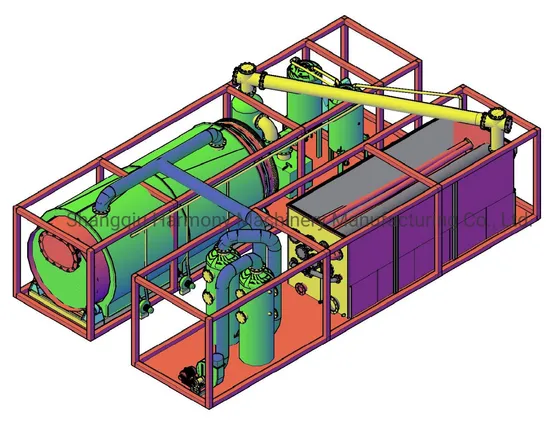

100% Installation Finished Befor Ex-Work 10 Tpd Tyre Recycling Pyrolysis System

Product Description

1.Tyre Recycling Pyrolysis Equiment Working Process

1.Feed raw materials: The raw material can be waste tire/waste plastic/waste rubber. Always feed by the auto feeder.

2.Pyrolysis: Include a reactor and catalyst room. Heat the reactor by coal/wood/oil/natural gas. This part will produce high temperature oil gas, the oil gas then flow into the next system.

3. Condensing: Oil gas come out from the reactor and catalyst chamber then cooling down in this part. Condensing system include condenser pipe, oil water separator, horizontal condenser and waste gas condenser. This will make the oil yield to the maximum.

4.Waste gas recovery: This part mainly deal with the gas that cannot be condensed. The whole process is very steady and high efficiency.

5. Discharge: After finished oil produce, the temperature of reactor can be cooled down, When the temperature falls down to 40 degree then carbon black can be discharged automatically by the way of anticlockwise rotate the reactor. The carbon black will drop into slag pool and then use screw conveyor to clean the slag pool. After discharging the carbon black, we can discharge the steel wire. There is steel wire hook in the auto-feeder, we only need put the steel wire hook into the reactor, and start the motor, the steel wire can be pulled out easily, there is no need for workers to contact the reactor, it is very convenient.

2.About oil rate for different material

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

3.Major parts
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4.Technical Parameter

NO.	Name	Parameter
1	The raw materials:	waste tyres, plastic and oil sludge,rubber
2	Total capacity:	10t/day
3	The size of reactor	2800*6000mm,
4	Average oil productivity:	tyre:40%-50%, plastic:60%-80%
5	Average carbon productivity:	30%-35%
6	Average steel productivity:	10%-15%
7	Average waste-gas productivity:	5-8%
8	pyrolysis time	8hours
9	Discharge time	3hours
10	Feeding time	3hour
11	Cooling time	3hours
12.	Delivery	15 days
13.	Payment term	30% Advance payment, balance paid before plant loading
14.	Oversea users	Lebanon,Korea,Poland,Turkey,Mauritius,Brazil,Malaysia, Indonesia,Vietnam,Philippine,Thailand,Pakistan,India
15.	Installation	Engineer guiding installation for free,buyers offer round-tickets and accommodation
16.	Warranty period	2 years warranty, lifetime maintenance

5. About us
Shangqiu Harmony Machinery Manufacturing Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(5 years experience) in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Our company is about 133400 square meter ,and the workshop is 58000 squremeter ,we have lathes ,milling machines,grinding machines and planders , broaching machines ,pucnhing machines,NC lathes,CNC miling machies,digital control drill and other testing device.We have more than 100 workers including 3 high-class engineers,10 professors ,and 40 technicists.Our Machine have been sold to India, Malaysia, Pakistan, Bangladesh, Lebanon, Mexico, Europe ETC.
6.About payment and delivery
30% TT advance payment ,balance paid by sight LC
We will delivery plant within 20days after getting deposit payment
We offer workers to customer site for guilding installtion and training workers for free
Reactor warranty is 5 years, whole set plant warrant y is one year
7.Specification choices:

Specification	Capacity	Raw material	Heating material	Working time (hrs)	Shipped by
XHZT-2200-6000	5Ton	Waste tyres Cables Plastics Rubber Oil sludge	Wood,coal ,oil,gas	12	2*40HQ
XHZT -2600-6000	8Ton			15	1*40HQ+1*40FR
XHZT -2600-6600	10Ton			18	1*40HQ+1*40FR
XHZT -2800-6000	10Ton			18	1*40HQ+1*40FR
XHZT -2800-6600	12Ton			20	1*40HQ+1*40FR
XHZT -2800-6600	15ton	Medical waste		22	1*40HQ+1*40FR
Contiuous plant	20Ton	Other waste		24	3*40HQ
Contiuous plant	60Ton			24	5*40HQ

7.Plant features
1. before ex-work or factory loading, allready finished installation
2.it is convenient to move machine to any place needed.
3.easy to use and mantain
