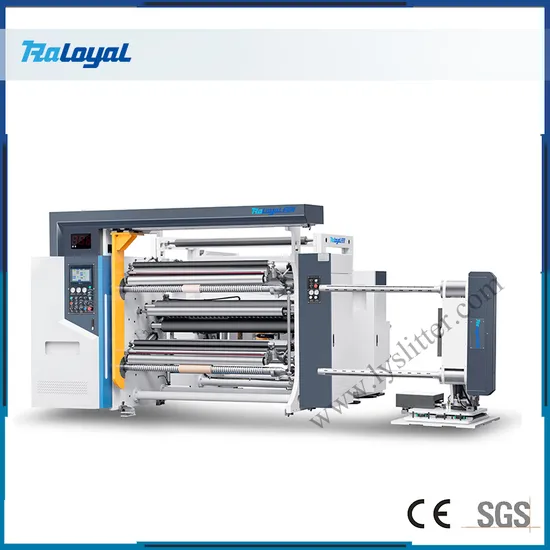

Factory Price High-Speed Label Sticker, Labelstock, Labels Slitting Machine

Product Description

Product Description
Use
This type high speed slitting machine is the most suitable machine for high speed and precision demand of the jumbo roller material slitting and rewinding. Such as: Paper, self adhesive paper, sticker, cardboard, electric screen protective film, laminated film, etc.
Characteristic HCH3-B series is our latest innovation, own the excellent performance:
· Automatic unloading device, increase productivity and ensure the production safety.
· Automatic shaft-less loading for jumbo roll.
· Machine driven by 3 sets 11kw synchronous servo motors, big power, high precision.
· Double "S" material path to avoid the gum leaking.
· Overhead material path to prevent the gum dripping.
· Machine body processing by CNC, ensure the whole machine precision and stability.
· Solve the problem of snake shape of finished product surface.
· Double-bead duplex friction shaft adopted.
· Semi-auto blade set. (Option)
· Automatic blade set. (Option)
Product Parameters

Machine model	HCH3-1300B	HCH3-1600B	HCH3-2000B
Unwinding width	1300mm	1600mm	2000mm
Machine speed	500m/min	500m/min	500m/min
Slitting precision	±0.03mm	±0.03mm	±0.03mm
Unwinding diameter	1200mm	1200mm	1200mm
Rewinding diameter	800mm	800mm	800mm
Main motor power	7.5kw	11kw	11kw
Rewinding motor power	2*7.5kw	2*11kw	2*11kw
Installation dimension	3980*4600*2250	3980*5000*2250	3980*5300*2250
Machine weight	6000kg	7000kg	9000kg

Standard configuration

PLC	SIEMENS --Germany
Touch Screen	Weinview --Taiwan
EPC/LPC Controller	Pausource --Taiwan
EPC/LPC Driver	Pausource --Taiwan
EPC/LPC Sensor	Pausource --Taiwan
Servo Motor	Danma -- Shanghai
Inverter	Innovance -- Shenzhen
Main Pneumatic Element	AirTAC --Taiwan
Main Bearing	NSK --Japan
Auto. Length Counter	Autonics --Korea
Proportional Valves	Germany brand
Bottom Knife	Korean
