Pipe Type Pulverizing Equipment Made in Shanghai

Product Description

Pipe type Pulverizing Equipment made in Shanghai
Product Description

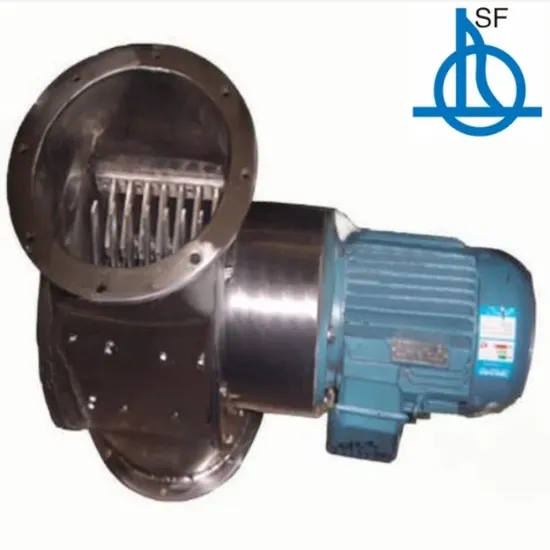

This machine is mainly composed of the body and crushing disk components, crushing disk by the motor direct drive, with high crushing line speed. In the crushing disk is equipped with a number of rows of crushing knife, on both sides of the body is equipped with a number of pieces of fixed knife, crushing knife and fixed knife to maintain a certain distance. The machine is installed and connected to the vertical pipeline, when the material enters the cavity, under the impact of the high-speed rotating crushing knife, the viscous lumps of material are crushed. This machine is suitable for crushing agglomerated materials, and can also be used as a coarse crusher after adding materials.
Scope of Application
It can be widely used in dyestuff, pigment, pesticide, chemical, food and other industries, and it is the ideal pre-crushing equipment used in the plant assembly line. It is ideal for pre-crushing equipment used in the plant assembly line. It can be produced by dry method or operated by wet method.
Product Parameters

Model Parameters	GH-100	GH-200	GH-250	GH-400
Motor Power (KW)	1.5	2.2	2.2	5.5
Tube diameter (mm)	100	200	250	400*400
Spindle speed (r/min)	1450	1450	1450	960
Weight (kg)	140	160	250	350
Dimensions(mm) L*B*W	810*550*500	710*500*450	740*350*500	1100*400*400
