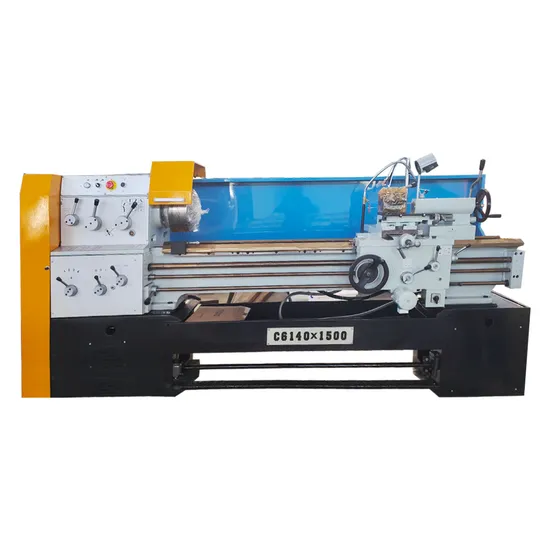

C6140 Horizontal Metal Gear Driven Mini Precision Mini Bench Lathes

Product Description

C6140 Horizontal Metal Gear Driven Mini Precision Mini Bench Lathes The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to
undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching
depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot
weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing
and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision
grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application:
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the
drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc
parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation,
humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.

Technical parameter

Specifications	CA6140 CA6140B	CA6240 CA6240B
Max. Swing over bed	400mm	400mm
Max. Swing over carriage	210mm	210mm
Max. swing in gap	_	630mm
Effective gap length	_	210mm
Max. length of work piece	750mm/1000mm/1500mm/2000mm/ 2200mm/3000mm/4000mm	750mm/1000mm/1500mm/2000mm/ 2200mm/3000mm/4000mm
Width of bed	400mm	400mm
Section of turning tool	25x25mm	25x25mm
Spindle speeds	10-1400rpm/16-1400rpm(24steps)	10-1400rpm/16-1400rpm(24steps)
Hole through spindle	52mm. (80mm)	52mm. (80mm)
Spindle taper	NO.6(Φ90 1:20)[Φ113 1:20]	NO.6(Φ90 1:20)[Φ113 1:20]
Number of feeds	64 kinds(for each)	64 kinds(for each)
Range of metric threads(kinds)	(1-192mm)44kinds	(1-192mm)44kinds
Range of inch threads(kinds)	(2-24tpi)21kinds	(2-24tpi)21kinds
Range of module threads(kinds)	0.25-48 (Moduie39kinds)	0.25-48 (Moduie39kinds)
Range of pitch threads(kinds)	1-96DP(37kinds)	1-96DP(37kinds)
Max. tail stock spindle travel	150mm	150mm
Tail stock spindle diameter	75mm	75mm
Taper of tail stock spindle center hole	NO.5	NO.5
