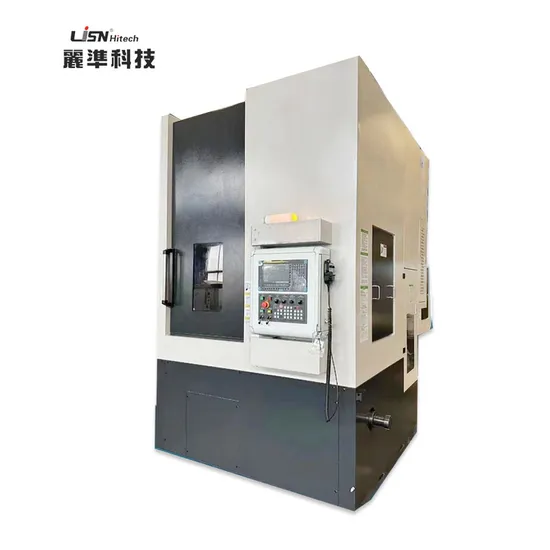

CNC Vertical Lathe Machine Wholesale Price Custom

Product Description

Product Description
High-efficiency CNC vertical lathe, suitable for processing small and medium-sized discs and cover parts High-strength cast iron base and column, with good stability and shock resistance Vertical structure, convenient clamping of workpieces, small footprint and oil-water separation structure The cooling water is clean and environmentally friendly. The separated cooling water tank is easy to clean. The precise, high-rigidity cartridge-type spindle structure is easy to maintain. The spindle sleeve is fully symmetrical and suspended, which can better eliminate the impact of thermal deformation on machining accuracy. High-power AC spindle motor , which enhances the stability of the machine tool operation. The main shaft is lubricated with imported high-grade grease, fully enclosed, maintenance-free. Tool holder, high rigidity, fast tool change, reliable centralized machine tool operation panel, making operation more convenient and fast X/Z axis adopts high-precision ball screw and special bearing for screw, good precision retention Integral fully enclosed protection, environmental protection clean.
Product Parameters

Item	Specifications	MODELS→ Unit	VL66/68	VL88	VL100
Mechanical capability	Three jaw hydraulic chuck	inch/mm	18(Φ450)	24(Φ610)	32(Φ810)
	Maximum rotation diameter	mm	Φ800	Φ1000	Φ1200
	Recommend cutting diameter	mm	Φ660/680	Φ800	Φ1000
	Maximum cutting height	mm	650/850	850	1000
	Maximum processing weight	kg	600	1000	1500
Travel	Left and right (x-axis) travel	mm	450	450	640
	Up and down (Z-axis) travel	mm	600/800	800	1000
Spindle	Spindle bearing diameter	mm	Φ160/180	Φ200	Φ260
	Spindle nose	-	A2-11	A2-15	A2-15
	Spindle speed	rpm	800	800	500
	Maximum torque of Spindle	Nm	862	1591	2150
Turret	Turret Type		A/AS/H/M	A/AS/H/M	A/AS/H/M
	Number of Tools	pcs	(vertical ):4/5/6	10ATC
	Tool size	mm	32,Φ50	32,Φ51	32,Φ60
Control system and motor	Control system	-	Faunc 0i TF/Siemens/GSK
	Spindle motor	Kw	22	30	30
	X axis motor	Kw	2.5	3	3
	Z axis motor	Kw	2.5	3	3
Machine Dimension	Outline size	m	2×3.6×3.2	2.6×3.8×3.6	3×4.2×4.2
	Weight	kg	9000	12000	16500

Detailed Photos

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
