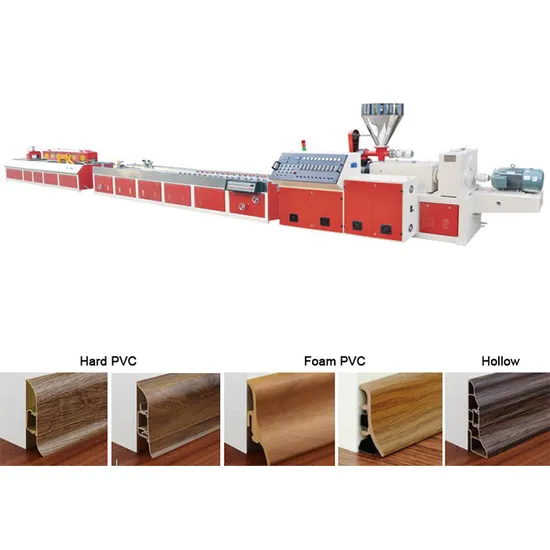

Advanced PE/PP WPC Profile Production Line for Efficient Manufacturing
Product Description
Short desciption
We offers top-brand components for the WPC profile extrusion line ensuring long lifetime. This line is widely used for producing various WPC profiles, such as WPC decking profile, WPC panel, WPC board.
Processing Process
The process flow of this line is PP/PE/PVC + wood powder + additive- mixing-material feeder-twin screw extruder-mould -Calibration table-cutting unit-discharge rack.
This WPC profile extrusion line adopts conical twin screw extruder, which has degassing system to ensure the excellent material plasticization. The mold and calibrator adopt wearable material; the haul-off machine and cutter machine could be designed as complete unit or separate machine. Product Parameters
Specifications

Model	LB180	LB240	LB300	LB600
Max width of products(mm)	180	240	300	600
Screw Model	SJ55/110	SJ65/132	SJ65/132	SJ80/156
Motor power	22KW	37KW	37KW	55KW
Cooling Water(m3/h)	5	7	7	10
Compressor(m3/h)	0.2	0.3	0.3	0.4
Total length(m)	18m	22m	22m	25m

Product details
Product detail
Conical Twin Screw Extruder
The screws are specifically designed and manufactured for the processing of WPC powder blend. The permanent magnet synchronous motor has high energy utilization. Equipped with PLC control system on the board, it realized controlling the whole production line in the one site.
Plate Mould
We offer double Strand mould for the WPC profile extrusion line. By this way, the productivity will be highly improved. The optimized channel design ensures high flow performance. The advanced plate mould produced the profile with high precision.
Calibration table
The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system. With precious layout of water pumps and vacuum calibrator, the WPC profile will be rapidly shaping and cooling. Enough length of the calibration table ensures the shaping of the WPC profile
Cutter Unit
We provide saw cutter for the wpc profile production line. With the rotating of the saw, the wpc profile will be cut at the designated length. With the automatic control system on the unit, the whole process is intelligent and easy-operation. Detailed Photos
Company Profile
Our factory

Our Exhibition


Certifications
Packaging & Shipping

FAQ
Are you a trading company or factory? Can I have a factory visiting?
We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.
How to build trust with Langbo We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.

For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.
Is the shipping cost included in the quotation? Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.

What will happen after order confirmation confirmation of Configuration
Sign of Proforma invoice
30% of total price pre-payment for production starting
Test running in the house, customers on-site or video connecting
Confirmation of machine condition
70% of the total price for delivery preparation
Confirmation of Delivery date
Shipping to customer
On-site commissioning
Training in machine operation and maintenance
Confirmation of handover
One year guarantee
Whole lifecycle service and technical support
What is the Payment Method? T/T, D/P, Letter of credit, Cash transaction
How to guarantee the machine quality made by Langbo We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.
How can customers get the exact machine as they wish? Factory visiting before order
Product sample posting to Langbo for a better understanding of customer's expectations and configuration communication
On-site checking during test running
Do you have CE Certification? Yes. Both our extrusion machine and plastic recycling machine have CE Certification.
What is the delivery time between order confirmation and delivery? Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.
What are services for after-sale One-year quality guarantee.
Quick response for technical support
Problem analysis for production problems
What means one-year quality guarantee After the handover of the machine, Langbo provides free new parts for every non-man-made damage.

How to get the required area of the machine?
For a new plant, you can contact me. (whatsapp After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
