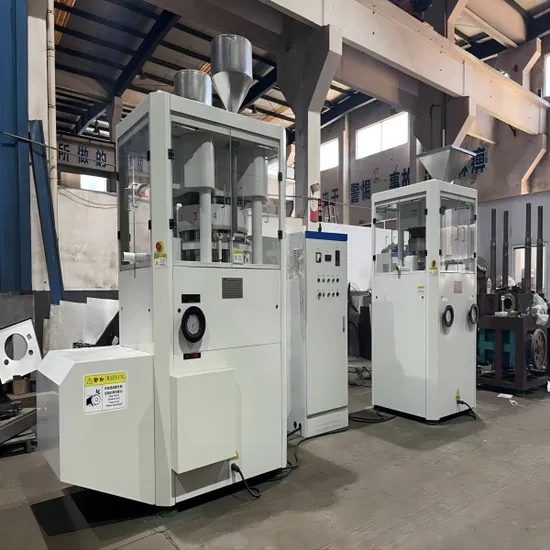

Large Rotary Tablet Press press machine for tablet

Product Description

Product Description ZPS80/ZPS50 series tablet press is used for pressing veterinary drug,salt block,chicken essence,chemical powder(TCCA,sDIC),bath salt,water purification salt and other powders.The tablet press has high precision,reliable performance,stable pressure, high yield.The machine can press not only round tablets but also different geometrical shape tablets and annular tablets.The tablets may have the impressed letters on both sides,meeting the GMP requirement.It is applicable to the pharmacy,food,chemical and other industries.
CHARACTERISTICS
1.Automatic centralized lubrication system;
2.Special oil drain,dustproof,noise control system;
3.The high-definition,isolation window design;
4. No dead angle tablet room with all open structure,clean operation and easy maintenance;
5. Mould's heat treatment process keeps pace with the world,has long service life;
6.The external part of zPS80/zPS50 series Rotary Anti-corrosion Tablet Press is fully inclosed,so that the pressing room and the drive mechanism are entirely eparated from each other. This design can prevent dust and avoid cross-contamination;
7.The electric control unit uses frequency step-less governor for easy operation and clear, concise panel.
TECHNICAL PARAMETERS

MODEL	ZPS80-8A	ZPS80-8B	ZPS50-9A	ZPS50-9B	ZPS50-11A	ZPS50-11B
Feature:	GMP standard	Anti-corrosive	GMP	Anti-corrosive	GMP standard	Anti-corrosive
Number of Dies:	8 sets	8 sets	9 sets	9 sets	11 sets	11 sets
Max. Pressure:	600KN	700KN	250KN	450KN	250KN	450KN
Range of tablet pressing:	φ30-80mm	p30-80mm	φ15-50mm	φ20-50mm	φ20-58mm	25-60mm
Depth of fling:	60mm	100mm	80mm	80mm	60mm	80mm
Turntable Rotation Speed:	0-13r/min	0-10r/min	0-15r/min	0-12r/min	0-15r/min	0-12r/min
Motor Power:	15kW	22kw	7.5kw	11kW	7.5kw	11kW
Dust Suction Power:	2.2kw	2.2kw	2.2kw	2.2kw	2.2kw	2.2kw
Max Production Capacity:	6240pcs/h	4800pcs/h	8100pcs/h	6480pcs/h	g900pcs/h	7920pcs/h
Power supply:	3P 380V 50HZ(can be customized)	3P 380V 50HZ(can be customized)	3P 380V 50HZ(can be customized)	3P 380V 50HZ(can be customized)	3P 380V 50HZ(can be customized)	3P 380V 50HZ(can be customized)
Overall Size(H):	2000mm	2000mm	2000mm	2200mm	2500mm	2500mm
Net Weight:	5000kg	5500kg	3000kg	3500kg	3200kg	3500kg

Product Show
