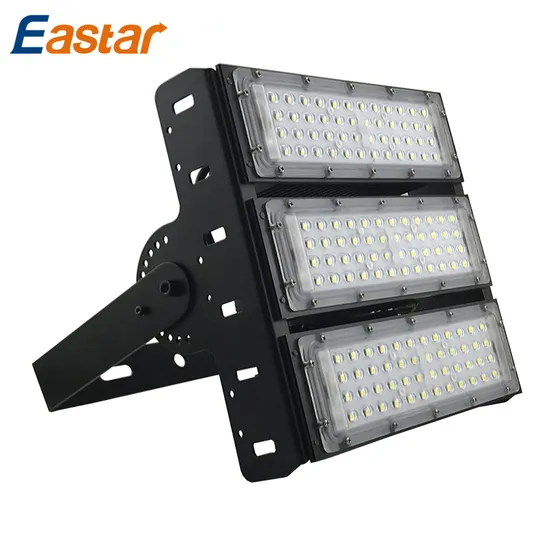

Outdoor 20W 30W 50W 100W 200W Projectors Rechargeable Projection Marine Garden Street Tunnel Stadium Wall High Bay LED Spot Flood Light

US$30.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.

YSD-TGD-001

Projection Distance

25-35m

Application

Park, Square, Factory, Garden

IP Rating

IP66

Certification

CCC, CE, CQC, EMC, Energy Star, FCC, FDA, LVD, RoHS, SAA, SASO, VDE

Operating Voltage

85-265V

Input Voltage

220V

LED Chips Brand

Bridgelux

Transport Package

Carton

Specification

Exporting Standard

Trademark

EASTAR

Origin

Yangzhou City, Jiangsu Province

HS Code

9405409000

Production Capacity

5000PCS/Month

Product Description

Product Description
Product Structure
Product Parameters

Model	YSD-TGD-50W	YSD-TGD-100W	YSD-TGD-150W	YSD-TGD-200W
Power	50W	100W	150W	200W
Input Volt	100-277V/277-480V/AC 50/60Hz
Led Type:	3030SMD
Led(pcs)	64pcs	128pcs	192pcs	256pcs
Power Factor:	>0.98
Power Efficiency:	>92%
Driver	MEANWELL, INVENTRONICS,SOSEN, according to customer needs
Ra	Ra>80
Lumen(Lm/W)	140lm/W
Control method	Ordinary, 0-10V, PMW, DALI,Photocell sensor
Light body material	Die-casting aluminum lamp body + PC Lens +304 stainless steel screws
Beam angle	60/90/60*150Deg
CCT:	3000K/4000K/5000K/5700K/6500K
Protection level	IP66/IK09
Installation	Adjustable angle bracket installation
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs
Model	YSD-TGD-250W	YSD-TGD-300W	YSD-TGD-400W	YSD-TGD-500W
Power	250W	300W	400W	500W
Input Volt	100-277V/277-480V/AC 50/60Hz
Led Type:	3030SMD
Led(pcs)	320pcs	384pcs	512pcs	640pcs
Power Factor:	>0.98
Power Efficiency:	>92%
Driver	MEANWELL, INVENTRONICS,SOSEN, according to customer needs
Ra	Ra>80
Lumen(Lm/W)	140lm/W
Control method	Ordinary, 0-10V, PMW, DALI,Photocell sensor
Light body material	Die-casting aluminum lamp body + pc cover +304 stainless steel screws
Beam angle	60/90/60*150Deg
CCT:	3000K/4000K/5000K/5700K/6500K
Protection level	IP66/IK09
Installation diameter	Adjustable angle bracket installation
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs
Model	YSD-TGD-500W	YSD-TGD-600W	YSD-TGD-800W	YSD-TGD-1000W
Power	500W	600W	800W	1000W
Input Volt	100-277V/277-480V/AC 50/60Hz
Led Type:	5050SMD
Led(pcs)	184pcs	276pcs	368pcs	460pcs
Power Factor:	>0.98
Power Efficiency:	>92%
Driver	MEANWELL, INVENTRONICS,SOSEN, according to customer needs
Ra	Ra>80
Lumen(Lm/W)	140lm/W
Control method	Ordinary, 0-10V, PMW, DALI,Photocell sensor
Light body material	Die-casting aluminum lamp body + pc cover +304 stainless steel screws
Beam angle	20/40/60/90/100*140Deg
CCT:	3000K/4000K/5000K/5700K/6500K
Protection level	IP66/IK09
Installation diameter	Adjustable angle bracket installation/Adjustable module
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs

Design and Analysis Design Ability
Calculation and Analysis Ability
Light Simulation Ability
