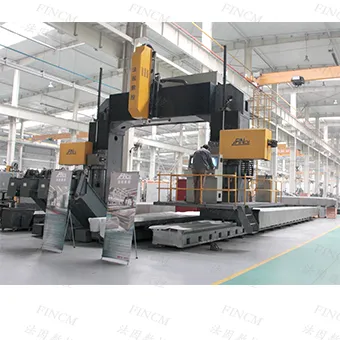

BHD3020-3 FINCM Steel Structural Fabrication Bridge Beam CNC Drilling Milling Machine
It is mainly used for three-sided drilling of large-sized H-beam or box beam. The positioning and feeding of the three drilling spindle boxes are all driven by servo motors, controlled by FAGOR8070 numerical control system, and adopt the gantry moving method, with high efficiency and high precision, etc. Features, can be widely used in construction, bridges and other industries.
Machine advantages:
1.The machine tool is mainly composed of bed, longitudinal slide, column, vertical slide, drilling power head, numerical control system, hydraulic system, pneumatic system, automatic lubrication system, spray cooling system and other parts.
2.The machine bed is placed horizontally and is divided into two parts: left and right. Each part is composed of three sections of the bed.
3.The machine tool table is included in the foundation and is made by the customer according to the basic drawing; the table does not need to use a continuous method, just distribute some support bars at equal intervals on the foundation for workpiece clamping.
4.The mobile gantry is composed of two uprights and one beam, all of which are welded by steel plates, and are artificially aged to eliminate internal stress.
5.The machine tool has three ram-type drilling power heads, namely left and right horizontal drilling power heads and vertical drilling power heads, to meet the requirements of drilling on three surfaces of the workpiece at the same time.
Technical specification of BDH3020-3

Workpiece size	Width	1500~3000mm
	Height	800~2000mm
	Max. Length	13000mm
Working stroke	X1, X2 axis	20000mm
	U/V/W axis	1950/2950/1950mm
	1/2/3 axis	700/800/700mm
Moving speed	X1, X2 axis	0~8m/min
	U/V/W axis	0~10m/min
	1/2/3 axis	0~5m/min
Positioning accuracy	X1/ X2 axis	0.20mm/full length
	U/V/W axis	0.10mm/full length
Drilling unit	Type	Ram Type CNC Drilling Power Head
	Quantity	3
	Spindle frequency conversion motor power	3×18.5kW
	Spindle taper hole	BT50
	Max. drilling dia.	Carbide Φ40mm Taper Shank Twist Drill Φ50mm
	Spindle speed	0~3000r/min
	Spindle Max Torque	235Nm
CNC system	CNC system	FAGOR8070
	No. of CNC axes	8
	Servo motor power	X1/ X2 axis: 2×4.2kW
		U/V/W axis: 3×3.4kW
		1/2/3 axis: 3×3.4kW
Hydraulic system	Hydraulic pump pressure/flow	15Mpa/22L/min
	Hydraulic pump motor power	5.5kW
Oil supply pressure of automatic lubrication system		2Mpa
Compressed air supply pressure		0.6Mpa
Chip conveyor motor power		4×0.75kW
Total machine power		About 98kW
Total machine weight		About 85t
Overall dimension(L×W×H)		About30000×9000×6000mm

List of the Key Outsourced Components:

NO.	Name	Band	Country
1	Linear Roller Guide	HIWIN/CSK	Taiwan(China)/ China
2	Linear Ball Guide	HIWIN/CSK	Taiwan(China)/ China
3	Ball screw	TBI/HIWIN	Taiwan(China)
4	CNC system	FAGOR	Spain
5	Servo motor and driver	FAGOR	Spain
6	Precision Spindle	KENTURN/VOLIS SPINDLE	Taiwan(China)
7	Hydraulic Pumps and Valves	JUSTMARK/YUKEN	Taiwan(China)
8	Energy chain	JFLO	China
9	Automatic lubrication system	HERG	Japan
10	Buttons, indicators and other low-voltage components	Schneider	France
11	Main pneumatic components	AirTAC	Taiwan(China)

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
