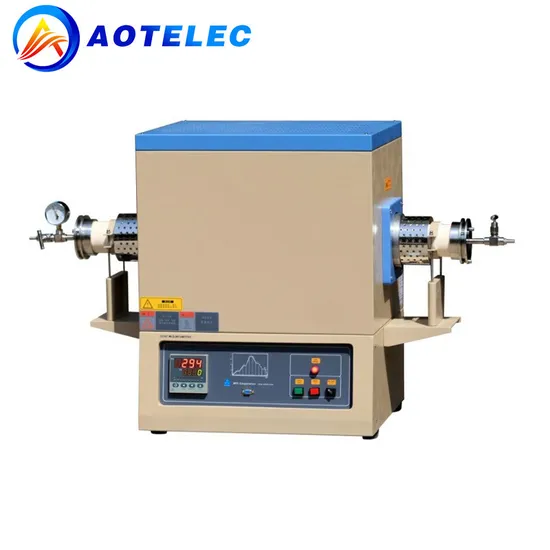

Lab 1500° C Vacuum Tube Furnace with Silicon Molybdenum Rod

Product Description

Product Description1500°C Vacuum Tube Furnace
GSL-1600X vacuum tube type high temperature furnace with silicon molybdenum rod as heating element,rated temperature 1500ºC, using B-type double platinum-rhodium thermocouple temperature measurement 518P automatic temperature control instrument, with high temperature control accuracy (±1ºC). In addition, the furnace has a vacuum device, can work in a variety of atmospheres, greatly improving its range of use. The furnace has the advantages of high temperature, high precision temperature control, simple operation, convenient maintenance, etc. It can be widely used in metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments.

Specification
Product Name	GSL-1600X
Main parameter	1.Maximum temperature: 1600ºC (<30min) 2.Long-term operating temperature: 800-1500ºC 3.Recommended heating rate: below 1400ºC : ≤10ºC/min; 1400 ° C to 1600 ° C: ≤5 ° C /min 4.Length of heating zone: 290mm 5.Maximum power: 5.2 KW 6.Voltage: single-phase AC220V 50Hz
Furnace structure	1.Double shell structure, with air cooling system, so that the surface temperature of the shell is less than 55ºC. 2.The furnace adopts high purity polycrystalline alumina fiber to minimize energy loss. 3.The surface of the inner furnace is coated with aluminum oxide coating of 1750 degrees imported from the United States, which can improve the reflectivity and heating efficiency of the equipment, but also can extend the service life of the instrument.
Furnace tube	(Standard) OD: 60 mm x 1000 mm L In order to ensure the uniformity of the temperature field and the tightness of the flange, the alumina tube plug should be plugged into both ends of the furnace tube before the instrument is used to heat up to prevent the loss of heat.
Vacuum seal	Standard with two stainless steel vacuum flanges (mechanical pressure gauge and stainless steel stop valve installed above).
Vacuum degree	The vacuum degree can reach 10-3 torr with the double rotary vane mechanical pump. If you want higher vacuum (<10-5 torr or better).
Temperature control system	PID30 segment programmed automatic control. Temperature control accuracy: ±1 ºC
Heating element	1750ºC grade silicon molybdenum rod.
Overall dimension	1350 L*520 W*780 H mm
Net weight	150 Kg
Warranty	One year warranty, lifetime technical support.

Packaging & Shipping
Company ProfileXiamen AOT Battery Equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
FAQQ1:How long do you need to prepare my goods?A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).Q2:Can we have our logo or company name to be printed on products or package?A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.Q3:How can I install and operate the machine by myself?A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.Q4:How to get technical support after purchasing?A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.Q5:What's the warranty for the items?A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
