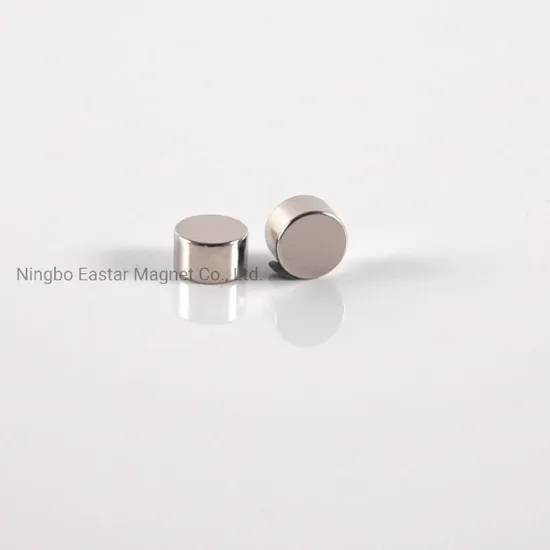

China Manufacturer High Quality with Grade N38 Round Button Permanent Neodymium Magnet

China Manufacturer High Quality with Grade N38 Round Button Permanent Neodymium Magnet

US$0.01-10.00 100 Pieces (MOQ)

Basic Info.

Model NO.
N35-N54( M, H, Sh, Uh, Eh, Ah )
Coating
Zn,Colored Zn,Ni+Ni, Nicuni,etc
Grade
N35-N54( M, H, Sh, Uh, Eh, Ah )
Factory
Established in 2007
Type
Permanent Magnet
Size
Can Be Vary According to Drawing
Magnetization
as Clients Needed
Processing Tolerance
-0.05 ~+0.05mm
Work Temp
-20 ~ +120 Degree Celsius
Deliver Time
7 Days
Transport Package
Standared Carton&Pallet
Specification
Customized
Trademark
eastar
Origin
China, Ningbo
HS Code
8505111000
Production Capacity
500ton/Year

Packaging & Delivery

Package Size
35.00cm * 29.00cm * 25.00cm
Package Gross Weight
8.000kg

Product Description

Product Description

Certification: ISO9001:2008 and RoHS.
Applications: Motors, Generators, Sensors, Speakers, Earphones and other musical instruments, Magnetic therapy devices, Magnetic Chuck, Magnetic bearings and couplings, NdFeB Pot Magnet and other magnetic applications.
Shape: Customized (Cylinder, Disc, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes are available)
Size: Customized size per your requirements.
Coating: Zn,Colored Zn,Ni+Ni, NiCuNi, Electroless Nickel, Phosphating+Epoxy, NiCu+Epoxy, Sprayed Epoxy, Ni-Au, Phosphated/Passivation, Parylene, etc.
Grade: N35-N54, N35M-N54M, N35H-N54H, N35SH-N54SH, N28UH-N50UH, N28EH-N48EH, N28AH-N45AH.

In order to provide you with a price, please provide the following details:
Magnet grades: from N35 to N45AH.
Magnet size: diameter and height. Drawings can be sent directly.
Magnetic direction: which direction the north and south poles are facing.
Magnet coating: Nickel, Zinc, Black Epoxy, AG, Au, etc.
Quantity: The more bulk order, the lower the price. Original factory.
Product Parameters


Grade
(Br) (Hcb) (Hcj) (BH)max
Tw ºC
%/ ºC
KGs T KOe KA/m KOe KA/m MGOe KJ/m3 α(Br) β(Hcj)
N35 11.8-12.3 1.17-1.22 ≥10.9 ≥868 ≥12 ≥955 33-36 263-287 ≤80 -0.12 -0.8
N38 12.2-12.8 1.22-1.25 ≥11.3 ≥899 ≥12 ≥955 36-39 287-310 ≤80
N40 12.6-13.1 1.25-1.28 ≥11.4 ≥907 ≥12 ≥955 38-41 302-326 ≤80
N42 12.8-13.4 1.28-1.32 ≥11.5 ≥915 ≥12 ≥955 40-43 318-342 ≤80
N45 13.2-13.7 1.32-1.38 ≥11.6 ≥923 ≥12 ≥955 43-46 342-366 ≤80
N48 13.6-14.2 1.38-1.42 ≥11.6 ≥923 ≥12 ≥955 45-49 358-390 ≤80
N50 13.9-14.5 1.40-1.45 ≥12.0 ≥955 ≥12 ≥955 47-51 374-406 ≤80
N52 14.2-14.8 1.42-1.46 ≥10.5 ≥836 ≥12 ≥876 49-53 390-422 ≤80
N54 1.45-1.49 1.45-1.49 ≥10.5 ≥836 ≥11 ≥955 51-55 406-438 ≤80
N35M 11.7-12.2 1.17-1.22 ≥10.9 ≥868 ≥14 ≥1114 33-36 263-287 ≤100 -0.12 -0.7
N38M 12.2-12.5 1.22-1.25 ≥11.3 ≥899 ≥14 ≥1114 36-39 287-310 ≤100
N40M 12.5-12.8 1.25-1.28 ≥11.6 ≥923 ≥14 ≥1114 38-41 302-326 ≤100
... ... ... ... ... ... ... ... ... ... ... ...
For more data, please contact us.
Our Advantages
Eastar Advantages
1.Competetive price
The strategic cooperation with China's No. 1 rare earth miner Chalco provides a strong and safe backup guarantee for the stable cost of rare earth raw materials.
2.High Quality
ISO9001, ISO14001 certified company, RoHS, REACH, SGS, FDA complied product.
There are excellent customers such as SIEMENS, BMW, REGAL BELOIT, NIDEC,etc.
Over 100 million neodymium magnets delivered to American, European, Asian and African countries.
3.Best Service
One stop service from R&D to mass production.
Will feedback to our customer within 12Hours.

Company Profile

Packaging & Shipping

Standard Packaging
• Vacuum packaging for all Neodymium magnets and Neodymium magetic assemblies.
• Shielding box and wooden box to protect the Neodymium magnets during shipping.
Shipping Methods
• Contract price with FedEx, DHL, UPS and TNT to minimum your shipping cost.
• Experienced shipping forwarder for Ocean and Air shipments.

FAQ
1:How long will you give me the reply?
we will contact you in 12 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO,TS and ROSH,we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality magnet we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
