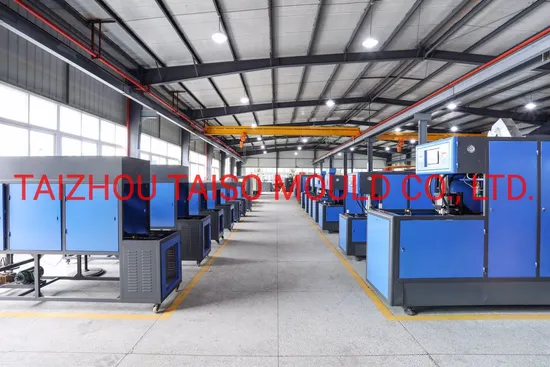

Pet Bottle Blowing Machine for Blowing Small Bottles From 10ml to 2000ml Bottles

Product Description

TS-3L Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Features
1. Produce bottle from 0.L to 3L bottles
2. Output capacity up to 800 bottles/hour for 0.5L using two cavities blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.

Model	TS-3L (1 Blower & 1 Heater)	TS-3L-II (2 Blower & 1 Heater)
Max. Volume	3L	2.0L
Output	300-900BPH	1200-1500BPH
Number of Cavities	1 & 2 Cavity	2 Cavity
Neck diameter	18-120mm	18-120mm
Max. diameter	105-140mm	130mm
Max. Bottle height	330mm	340mm
Mold thickness	70-230mm	70-230mm
Clamping stroke	190mm	190mm
Rated power	14kw	20kw
Power consumption	5-8kw	10-13kw
Blower size	1600*620*1550mm	1600*620*1550mm*2
Heater size	1700*600*1350mm	2160*600*1350mm
Weight	850kgs	1400kgs
