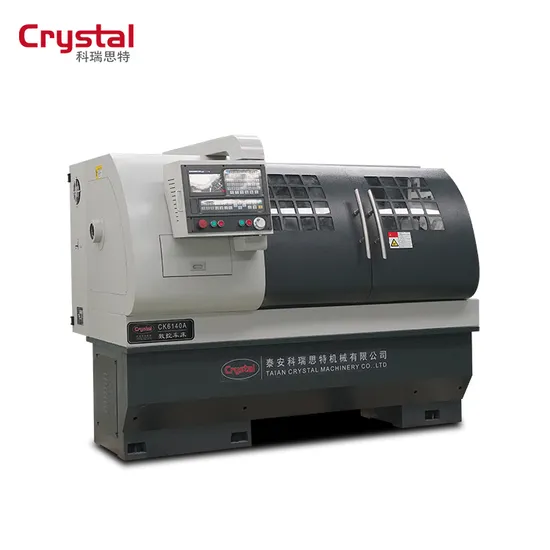

China Automatic Metal Turning CNC Lathe Machine Ck6140A Precision Horizontal Auto Lathe
| US$9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Ck6140A
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
CNC System
GSK,Siemens
Spindle Bore
60mm
Max.Length of Work Piece
750mm
Range of Spindle Speed
100-2500rpm
Taper of Spindle Bore
Mt5
Max. Swim Over Bed
400mm
Stations of Tool Carrier
4
Motor Power
5.5kw
Packing Size (mm)
2050*1400 *1650mm
Net Weight
1800kg
Transport Package
Standard Wood Packing
Specification
CE
Trademark
Crystal
Origin
Taian City, Shandong Province, China
HS Code
8458110090
Production Capacity
30sets/Month
Product Description
NOTE: The currency exchange rate fluctuates greatly,please consult customer service for the best price.
Standard configuration:
1. System:GSK928TD-L,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
Optional accessories:
1) pneumatic chuck
2) hydraulic chuck
3) pneumatic tailstock
4) hydraulic tailstock
5) enlarged bord , two gears, variable frequency speed regulation
Specifications
ITEMS | Specifications |
Max. swim over bed | Φ400mm |
Max. swim over carriage | Φ245mm |
Max. length of work piece | 750/1000mm |
Width of the machine | 330mm |
Size of three-jaw chuck | 250mm |
Range of spindle speed | 150-2500rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT4 |
Stations of tool carrier | 4/6/8 |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8 m/min, (X) cross 4 m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 120mm |
Motor power | 5.5KW |
Packing size(length ×width ×height) | 2050/2300mmx1400mmx1650mm |
Net weight | 1750/1800kg 1950/2000kg |
Main features:
1. After the lead rail of the machine is treated by superaudio quenching and finish
grinding and plastic coating, it is of good rigidity and stability.
2. Independent spindle, stepless speed regulation, with lower noise and high
standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high rotate speed and sophisticated bearing, with smooth
surface.
4.The extra size diameter of the spindle bore is φ60mm while the diameter of chuck is φ250mm.
