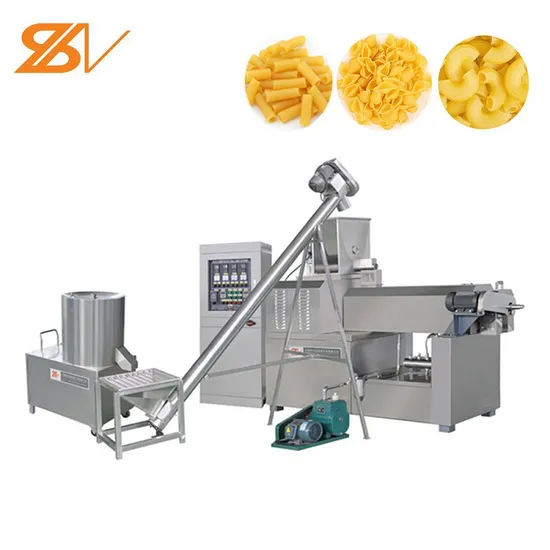

Spaghetti Pasta Macaroni Making Machine Plant / Pasta Macaroni Production Line

Product Description

1). Description:
There are many varieties of pasta/macaroni, according to different raw material, can be divided into durum wheat pasta/macaroni, rice pasta/macaroni and corn pasta/macaroni. We are also constantly testing new materials and formulations for our customers. according to different raw material, can be divided into penne, fusilli,shell,elbows,rigatoni, vermicelli,more special shape of rice, letters and other shapes. These shapes are achieved by changing the mold of the extruder.
The key factor determining the quality of pasta/macaroni is raw material. Pasta/Macaroni has exact demand on raw materials, it must be made from a typical "Durum wheat" (semolina) that is high enough in protein content about 14%, high in wet gluten, strong tendons. Pasta/Macaroni made from this raw material has a translucent pale yellow color.
The temperature and pressure control inside of extruder, with our unique research of vacuum technology, as well as high-precision mold, extruded pasta/macaroni has more closely tissue and not easy to break, improve product appearance,transparency and cooking performance.
2). Raw materials:Semolina ,wheat flour, corn flour etc as raw materials
3). Products:It could produce different shapes by changing the mold

4). Capacity: 100-120kg/h&280-300kg/h
5). Flow chart:Mixing system---Extrusion system----Cutting system---Drying system--Packing system
6). Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it
according to customers' Local voltage according to different countries
7). Machines materials:All the machines are made by stainless steel
8). Technical parameters:

Model	Install capacity	Power consumption	Output	Size
DLG110	110kw	80kw	120-120kg/h	19000*2000*3500mm
DLG150	140kw	100kw	280-300kg/h	26000*2000*3500mm

9).Machines in factory:
Detailed Photos
Macaroni production line
Name: Mixer
Brand: SAIBAINUO
This equipment can mix material,water and other additives. It's the first step of food processing. Macaroni making machine
Name: Screw conveyorBrand: SAIBAINUO The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking and dust pollution.
Pasta production line
Name: Extruder Brand: SAIBAINUO Controlling system, Feeding system, Extruding system, Heating system, Cutting system, Lubricating system.pasta machine prices
1) Alloy (38CrMoAL) screw made by nit-riding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials. 2)Adopting speed-adjusted converter on feeding system, extrusion system and cutting system.Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process. 3)Gearbox with automatic lubrication function, extending gear life. 4) World famous brand Siemens main motor, guaranteeing good quality 5)Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely. 6)Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
pasta machine prices
Pasta making machine
Name: ElevatorBrand: SAIBAINUO It will convey the product from extruder to oven. Pasta machine prices
Name: OvenBrand: SAIBAINUO
With the drying of the oven, the moister of soya meat analogue can get down below 10% and this is easy to be storage for long time.There are heating system and convey system.
10).Our Services

1.Manufacture	Keep the quality the first.
	Make more products benifit to customers' need.
2.Online/Sale service	Supper and solid quality.
	Fast and punctyal delivery
	Standard export package or as customers' need.
3.After-sale service	Assistance to build factory or your project.
	Repairing and maintenance if any problem occur in the warranty.
	Installation and clerks training.
	Spare and wearing parts for free or with big discount.
	Any feed back of machines can be told us, and we will try our best to support you.
4.Other cooperate service	Technology knowledge share.
	Factory building advising.
	Business expansion adbvising
